Vehicle Info NeededVIAIRPART NUMBER: 961-48532

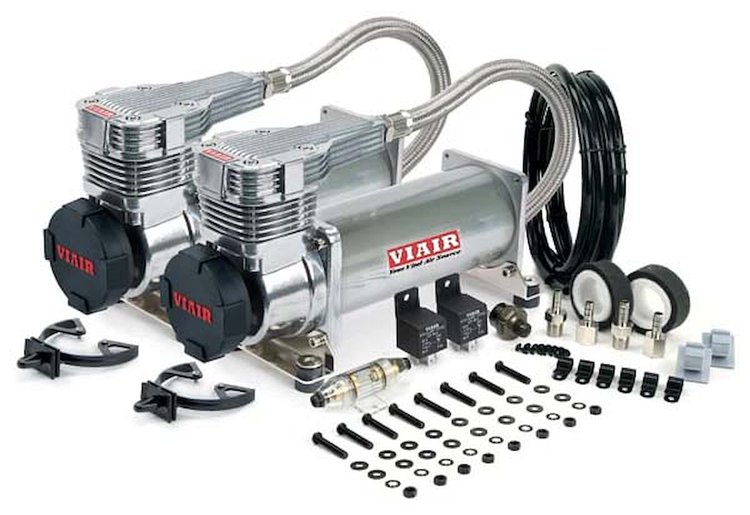

48532 485C Gen2 Dual Performance Value Pack Onboard Air System
$53699
Ships on 09/09/2026
Lowest Price GuaranteeDual 485C Air Compressors
485C Gen2 Dual Performance Value Pack Onboard Air System(2) 485C Compressors @ 1.13 CFM 10 Gallon Air Tank 100-Percent @ 200 PSI Duty Cycle Permanent Magnetic Motor Platinum Finish
Vair 48532 Features:
- Includes (2) 485C Compressors w/Thermal Overload Protectors, (2) Air Filter Assemblies, (2) VIAIR Removable Filter Covers, (2) Remote Mount Brackets, (2) Sets of Remote Mount Fittings, (2) Sets of Spare Air Filter Elements, (2) Leader Hose Clips, (6) Air Line Clips with Included Hardware, (8) Sets of Nuts, Bolts, Washers and Lock Washers, (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse), (2) 40-Amp Relays, (1) One Pressure Switch (165 PSI on, 200 PSI off), (2) Stainless Steel Braided Leader Hoses with Inline Check ValveAir Line (For Remote Mount Filter Installation)
- Max. Working Pressure: 200 PSI
- Combined Max. Amp Draw: 46-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
- Net Weight: 22.10 lbs.
Vair 48532 Notes:
- Use thread sealant for proper installation - Thread tape is not recommended.
- Recommended torque for 1/8” is 10 ~ 11 ft. lbs.
- Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
Onboard Air Systems (OBA) are complete pneumatic systems intended to accomplish various tasks, depending on the kit selected. VIAIR 480C OBA systems use dual compressors that have a 100% duty cycle at 200 psi. The included sealed pressure switch comes on at 165 psi and shuts off at 200 psi. Each Onboard Air System comes complete with compressors, air tank, fittings, pressure switch, relay(s), electrical connectors and all applicable accessories. Compressors are available in kits with either a platinum or stealth black finish.
Part TypeAir Compressor
Product LineViair 485C Gen 2 Onboard Air Systems
BrandVIAIR
Package Height10.0
Package Width14.0
Package Length14.0
Weight26.0 PG
Part CategoryAccessories
Wiring Harness IncludedYes
Maximum Pressure (Psi)200
Compressor Weight22.1 lbs.
Compressor Power Source12 V DC
Compressor Amps46
Air Lines IncludedYes
Fittings IncludedYes
QuantitySold as a Kit
Cfm1.13
Part FitmentUniversal
Tank IncludedYes
Vendor Part Number48532
Package Qty1
Package TypeEA
