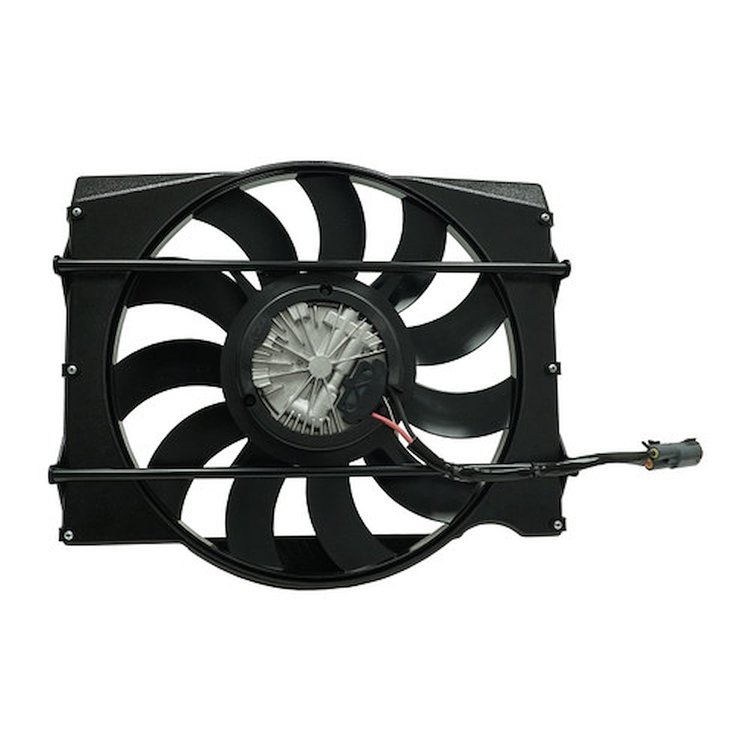

Vintage Air 280479 CustomFit Brushless Fan Kit Features:

• Fits 1955-1957 Chevrolet Full-Size models
• 850 Watt Brushless Motor
• 19" Fan
• Laser cut powder coated bracket and frame
• 6-gauge power harness kit with 100-amp MIDI-Fuse assembly
• Requires control harness (available separately based on engine thermostat temperature customer plans to use (or aftermarket engine controller)
• Based on Walker radiator (21.875 in. x 17.5625 in.)
• Designed from the ground up for primary engine and AC cooling duty
• Pulse width modulation control provides maximum cooling power available when you need it, automatically dials back as demand lessens
• Extremely long motor life ( up to 40,000 hr)
• Waterproof (IP68)
• Easy to install and set-up, stand-alone controllers available
• May be controlled by several aftermarket engine controllers (negative logic duty cycle definition@50-500 Hz)
• Quiet operation (85 dBA at 1 m from the fan module - lateral side)
• Laser-cut, CNC-bent and powdercoated steel bracket with mounting hardware designed for specific vehicle applications
• Model specific ABS shroud gathers and directs air flow across the entire radiator face ensuring maximum

Vintage Air 280479 CustomFit Brushless Fan Kit Note:

• Designed for OEM style radiator in 6-Cylinder position (ahead of core support)
• Fan is designed to be a puller only. Cannot be used as a pusher type fan.
• Requires temperature controller based on engine thermostat. See Vintage Air Partnumbers 113018 or 113019
