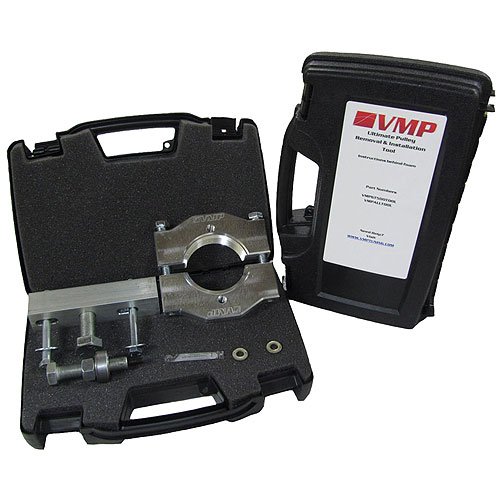

VMP Ultimate Pulley Removal & Installation Tool
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- VMP Ultimate Pulley Removal & Installation Tool
- Ford Mustang GT500
- Accommodates 2.6"-3.15" Pulleys
VMP Ultimate pulley puller and installer tool for Shelby GT500 will remove and install factory press-fit style pulley while supercharger is still installed on the car. This tool utilizes fine thread bolts, bearings, and a supplied grease pack which makes using this tool a breeze. Less expensive tools that use course thread bolts and no bearing can make a pulley removal and installation 10 times harder, VMP tools avoid these headaches due to its proper design. This puller is different from most on the market. The precision-machined aluminum clamshell that clamps onto the pulley and grabs it by the ribs, and leaves no marks. This prevents damage and applies equal pulling force all the way around the pulley, for easy damage-free removal. This tool also works with Lightnings, Roushcharged F150s, Roushcharged Mustangs (09+ M90 with a press-fit pulley or P51 TVS).
HD Clamshell Set 2
Clamps onto pulley
1/2-13 bolts x 3
2
Holds clamshell together
3/8-16 bolts x 4
2
Holds clamshell to square bar
3/8 washers
2
For use on long bolts in bar
Square bar
1
Used for pulley removal only
3/4-16 bolt with nub
1
Used for removal ONLY
5/8-18 bolt with tapped hole
1
Used for installation ONLY
M8 x 40 full thread screw
1
Used for installation of pulley
Large 5/8 D-3 bearing
1
Used for installation of pulley
Small washers
1
Used for removal of pulley
5/8-18 nut
1
Used for installation of pulley
Grease Packet
1
For big bolt threads, nut, & washer
