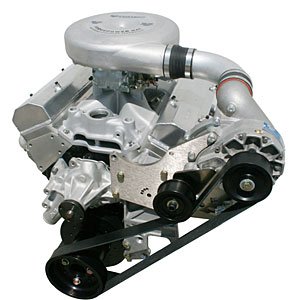

*Used V-3 Si-Trim GM Supercharger Kit

Name: *Used V-3 Si-Trim GM Supercharger Kit
Brand: VORTECH
SKU: 933-4GP218-050LU
Price: 2498.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy Small Block Carbureted Supercharger Kits

Pre-Owned V-3 Si-Trim GM Supercharger Kit

Carbureted Small Block Chevy

Satin Finish

5-6 PSI

30%-75% HP Gains

Fits: Universal Small-Block Chevy with Carburetor

GM small-block carbureted blow-through system features the V-3 Si-trim supercharger with internal lubrication. This kit also includes the new Forcepower Hat. This unique cast aluminum piece features an internal diffuser for air control that reduces jetting related issues associated with a traditional carb hat. This design permits 360-deg rotation for universal fit. It has a low-profile height of only 3.2" with a 3" diameter inlet port. It includes a sealing gasket and all necessary hardware for use with a 4150 style carburetor. Adds up to 125HP at modest boost levels. Fits under the stock hood of most vehicles. Easily upgradable with various pulleys. Allows for V-belt or serpentine accessory drive configurations. V-3 compressor is capable of supporting up to 775 HP.

Features:

V-3 Si-Trim supercharger
Supplied pulley ratio will produce approximately 5-6 psi at 5500 rpm on a mildly modified 350" engine
Cast aluminum base mounting bracket with all necessary hardware
3/8" thick nickel plated steel mounting plate for rigid supercharger attachment
Supercharger air inlet filter
Mandrel bent aluminum discharge tube with clamps and silicone sleeves
Cast aluminum carburetor bonnet assembly

Each Vortech Supercharging System is developed to operate as a seamless addition to the base vehicle. By employing the same methods as original manufacturers, Vortech engineers create integrated supercharger systems that appear as if they're original equipment yet operate at an even higher level of sophistication. The boost curve generated by Vortech Superchargers is ideally matched with today's highly evolved engines and provides a power-when-you-need-it sensation. The supercharger and its subsystems fully integrate into the vehicle's existing platform, yielding a smooth continuity of power and performance.

Tuner Kits
These configurations are designed for those qualified tuners or race shops who do not require the fuel managements items included in Vortech's standard systems. Among the items excluded are fuel pump, fuel injectors, FMU, air inlet assembly (T-Trim models), and ECM programmer or timing controller.

Features:

Gear driven, centrifugal supercharger with SQ technology provides quiet operation and unmatched reliability
Technologically advanced, high-efficiency compressor stage design developed in Vortech's supercharger test cell
Supercharger drive system includes all necessary belts, pulleys, idler and tensioner
High-flow bypass valve provides surge-free compressor operation
Fuel management/calibration components used are high-capacity fuel injectors, high-flow fuel pump, fuel management unit (FMU), high-flow MAF, ECM chip or module, ECM re-programmer and timing controller (These items vary per application. Click More Info below for details.)
Oil feed & oil drain assemblies deliver the best possible lubrication and cooling for the supercharger, preferred for sustained boost conditions
High-flow air intake configuration with reusable air filter and specially designed inlet ducts for superior fit
Inlet and discharge duct connections utilize heat-resistant silicon sleeves and premium quality stainless steel clamps
OE-type cast aluminum or billet aluminum mounting bracketry for rigidity and a factory-installed appearance
Compatible with factory OBD-II engine management systems

JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
