V-3 Si-Trim Carbureted LS-Engine Swap Supercharger Kit

Name: V-3 Si-Trim Carbureted LS-Engine Swap Supercharger Kit
Brand: VORTECH
SKU: 933-4GX218-140L
Price: 4850.99 USD
Availability: OutOfStock

^$4,850⁹⁹$5389.99You Save$539.00

Lowest Price Guarantee

Universal Carbureted GM LS Supercharger Kits

LS-Engine Swap Supercharger Kit

V-3 Si-Trim Supercharger

Universal Carbureted Applications

For use with C5 Corvette Front Engine Accessory Drive (Not Included)

Tuner Kit (Fuel & Tuning Components Not Included)

Satin Finish

PRODUCT OVERVIEW:

This is a “universal” LS Swap supercharger kit designed for vehicles equipped with a carbureted Chevrolet engines using LS1,LS2 style Intake manifold and C5 Corvette Front Engine Accessory Drive (FEAD)
This kit requires the installer to supply the Accessory drive assembly Equivalent to GM 19257325 or 19202977
Water Pump required for proper belt alignment ACDelco 19195105 or equivalent
Verified to fits 66-67 Chevelle and El Camino models. May fit other Chassis configurations but has not been verified.
No tuning provided
This application is not C.A.R.B. Legal

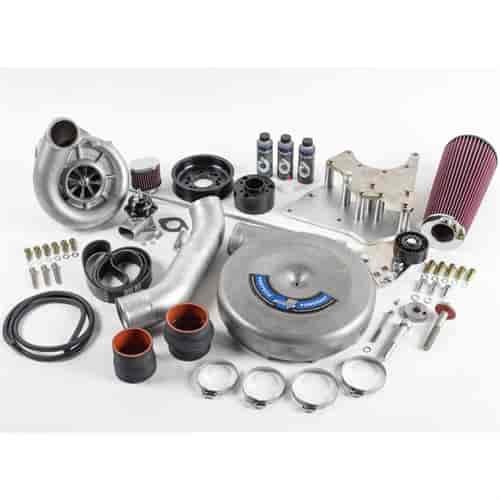

INCLUDES:

V-3 Si supercharger with 3.60” 10-rib pulley (CW rotation, curved discharge, passenger side mount)
Billet aluminum base mounting bracket with all necessary hardware
3/8” thick nickel plated steel supercharger mounting plate for rigid supercharger attachment
Supercharger drive assembly
Integrated manual belt tensioner with sealed bearing tensioner pulley and 10-rib belt
Billet aluminum 10-rib supercharger crank pulley with hard anodize finish (6” diameter)
Crank pulley spacer
High-grade mounting hardware
Supercharger air inlet filter
Mandrel bent aluminum discharge tube with clamps and silicone sleeves
Vortech Maxflow Race Bypass Valve with filter
Installation time approximately 4-6 hours
Supplied pulley ratio will produce approximately 8-10 psi @ 6000 RPM on a typical LS1, LS2
Horsepower gains (dependent on engine size) 30-75+%

REQUIRED:

Major components that are not included, but are necessary for proper system function and are to be supplied by the installer
Accessory drive system GM 19257325 or 19202977
ACDelco 19195105 or equivalent water pump
Aftermarket Harmonic Balancer
Boost referenced fuel regulator
Larger fuel injectors
High flow fuel pump
Engine calibration

Emissions Notes:

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles, on engines that have been transplanted or swapped into uncontrolled or pre-pollution controlled vehicles, & vehicles used solely for the purposes of closed competition racing.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

1965 and older U.S. manufactured California Certified vehicles

1967 and older U.S. manufactured Federally Certified vehicles

1967 and older Foreign manufactured vehicle

The following vehicles are considered Racing Use Only Vehicles:

Racing Use Only Vehicles are those vehicles that are used exclusively for competition that are not registered, will never become registered, and will never be used on streets or highways.

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

1966 and newer U.S. manufactured California Certified vehicles

1968 and newer U.S. manufactured Federally Certified vehicles

1968 and newer Foreign manufactured vehicle

*Installation of parts which are not CARB approved on a pollution-controlled vehicle in the State of California, or in any state that has adopted CARB emissions standards, may result in the Department or Bureau of Motor Vehicles (DMV or BMV) revoking the vehicle registration and certificate of ownership (title), refusing the transfer of registration, and/or the vehicle failing smog inspection. Law enforcement may cite you for the use of an illegal aftermarket part and seize your title and license plate.*

**States that have adopted some or all of the CARB emissions standards include California, Colorado, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New Mexico, New York, Oregon, Pennsylvania, Rhode Island, Vermont, Washington, & Washington D.C.**

Part TypeSupercharger Kit

BrandVORTECH

Part FitmentDirect Fit

Package Qty1

Package TypeEA
