VORTECHPART NUMBER: 933-8D103-001

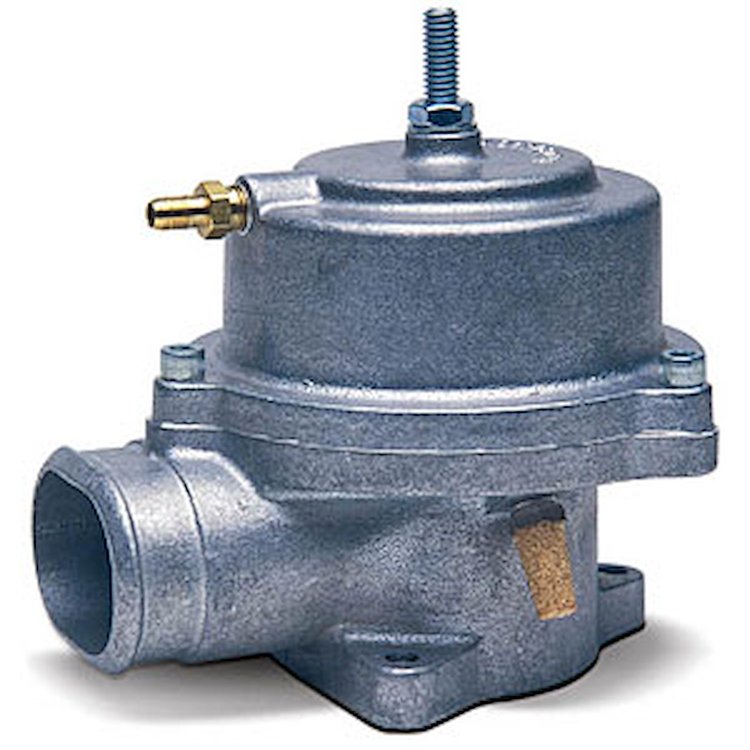

Maxflow Mondo Bypass Valve

Name: Maxflow Mondo Bypass Valve
Brand: VORTECH
SKU: 933-8D103-001
Price: 409.49 USD
Availability: InStock

^$409⁴⁹$454.99You Save$45.50

Ships on 09/10/2026

Lowest Price Guarantee

Maxflow Mondo Bypass Valves

550+ CFM at 10 PSIG
2" Outlet
Satin Finish

Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

These Vortech High-flow Mondo Valves (550+ cfm at 10 psi) are recommended for applications creating more than 12 PSI and are mandatory for any system using a cog drive belt. They can be adaptable to all types of supercharged and turbocharged installations, mounted at any angle. The outlet mates to a 2" hose. Other features include anodized aluminum valve head with O-ring seal, a shaft configuration that allows valve head articulation for perfect sealing, and an improved dual vent design. A large signal hose connection provides for fast valve action. An installation gasket is also included.

Part TypeBypass Valve

Product LineVortech Maxflow Mondo Bypass Valves

BrandVORTECH

Package Height6.3

Package Width6.4

Package Length6.7

Weight2.79 PG

Part CategoryPerformance Parts

Blow-Off Valve FinishSatin

QuantitySold as a kit

Boost Range (Psi)12-25

Part FitmentUniversal

Steel Flange IncludedNo

AdjustableYes

Blow-Off Valve MaterialAluminum

Aluminum Flange IncludedNo

Vendor Part Number8D103-001

Package Qty1

Package TypeEA
