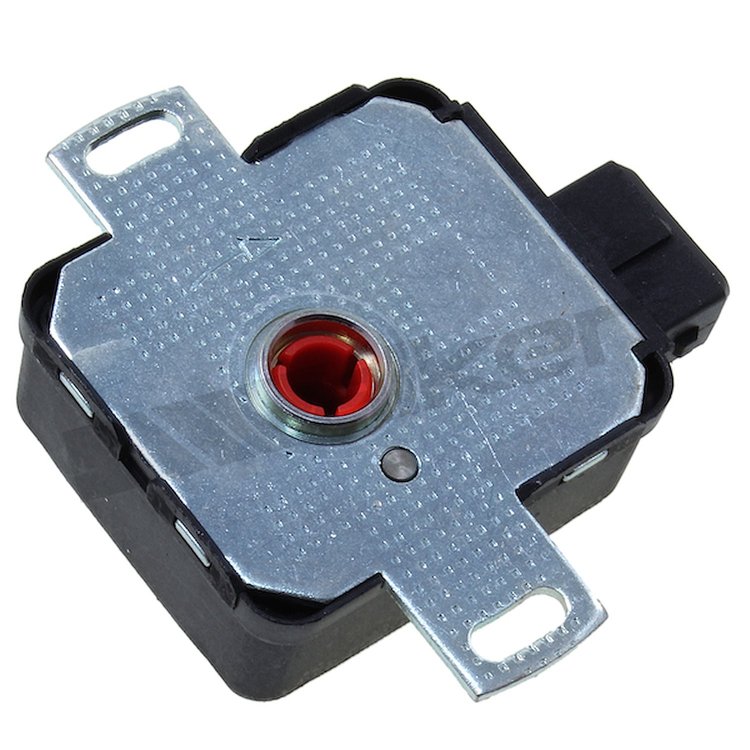

WALKER PRODUCTSPART NUMBER: 948-200-1151
THROTTLE POSITION SENSOR
$5807
Throttle Position Sensor1984-1993 Geo, Suzuki, Toyota Applications Female Rectangle Connector Sold Individually
The replacement throttle position sensor is made for select 1984-1993 Geo, Suzuki and Toyota applications. It reports throttle plate angle to the engine computer as a changing voltage, which the computer uses with other inputs to calculate fuel delivery.
Walker Products 200-1151 Throttle Position Sensor Features:
- Fits 1989-1991 Geo Metro, Suzuki Swift; 1989-1992 Geo Prizm; 1984 Toyota 4Runner; 1984-1993 Toyota Celica; 1985-1991 Toyota Camry; 1985-1989 Toyota Van
- Fits 1988-1993 Toyota Corolla; 1991-1992 Toyota MR2
- Engine coverage includes 1.0L I3, 1.3L I4, 1.6L I4, 2.0L I4, 2.2L I4, 2.4L I4 applications
- Female rectangle electrical connector with 3 blade terminals
- Plastic and metal construction
- Adjustable mounting position
- Mounts on the throttle body
- Mounting hardware not included
Part TypeThrottle Position Sensor
BrandWALKER PRODUCTS
Package Height1.5
Package Width2.25
Package Length3.0
Weight0.23 PG
Part CategoryReplacement Parts
Terminal TypeBlade
Connector GenderFemale
Mounting Hardware IncludedNo
MaterialPlastic / Metal
Connector ShapeRectangle
AdjustableYes
Mounting Bracket IncludedNo
Terminal GenderMale
Throttle Body MountedYes
Terminal Quantity3
Part FitmentDirect Fit
Connector Quantity1
Vendor Part Number200-1151
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
