WALKER PRODUCTSPART NUMBER: 948-200-1184

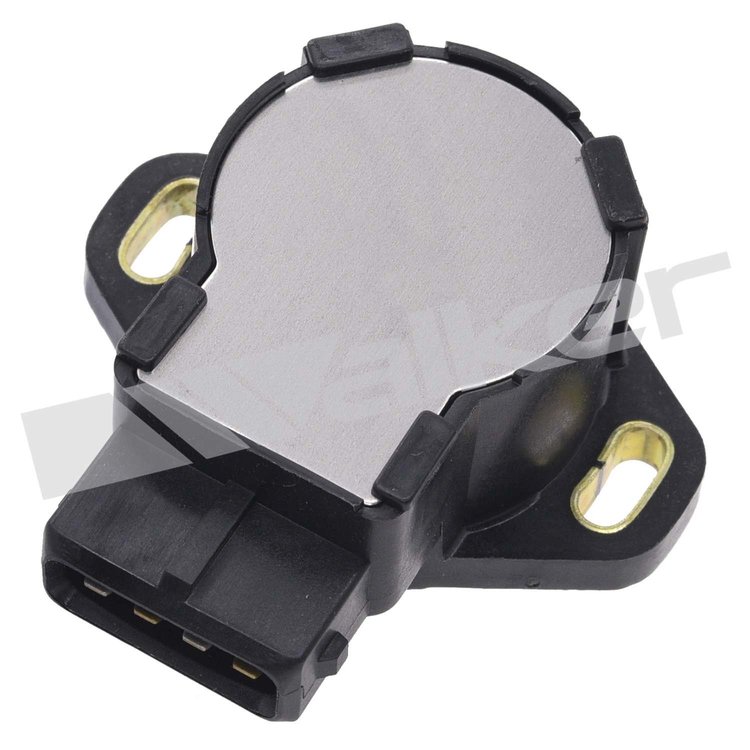

THROTTLE POSITION SENSOR
$18015
Throttle Position Sensor1987-1988 Chevy Sprint, 1989-1991 Geo Metro, Suzuki Swift Female Rectangle Connector Sold Individually
The replacement throttle position sensor is made for 1987-1988 Chevy Sprint, 1989-1991 Geo Metro and Suzuki Swift. It reports throttle plate angle to the engine computer as a changing voltage, which the computer uses with other inputs to calculate fuel delivery.
Walker Products 200-1184 Throttle Position Sensor Features:
- Fits 1987-1988 Chevy Sprint; 1989-1991 Geo Metro, Suzuki Swift
- Engine coverage includes 1.0L I3, 1.3L I4 applications
- Female rectangle electrical connector with 4 blade terminals
- Plastic construction
- Adjustable mounting position
- Mounts on the throttle body
- Mounting hardware not included
Part TypeThrottle Position Sensor
BrandWALKER PRODUCTS
Package Height1.5
Package Width2.25
Package Length3.0
Weight0.1 PG
Part CategoryReplacement Parts
Terminal TypeBlade
Connector GenderFemale
Mounting Hardware IncludedNo
MaterialPlastic
Connector ShapeRectangle
AdjustableYes
Mounting Bracket IncludedNo
Terminal GenderMale
Throttle Body MountedYes
Terminal Quantity4
Part FitmentDirect Fit
Connector Quantity1
Vendor Part Number200-1184
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
