WALKER PRODUCTSPART NUMBER: 948-241-1040

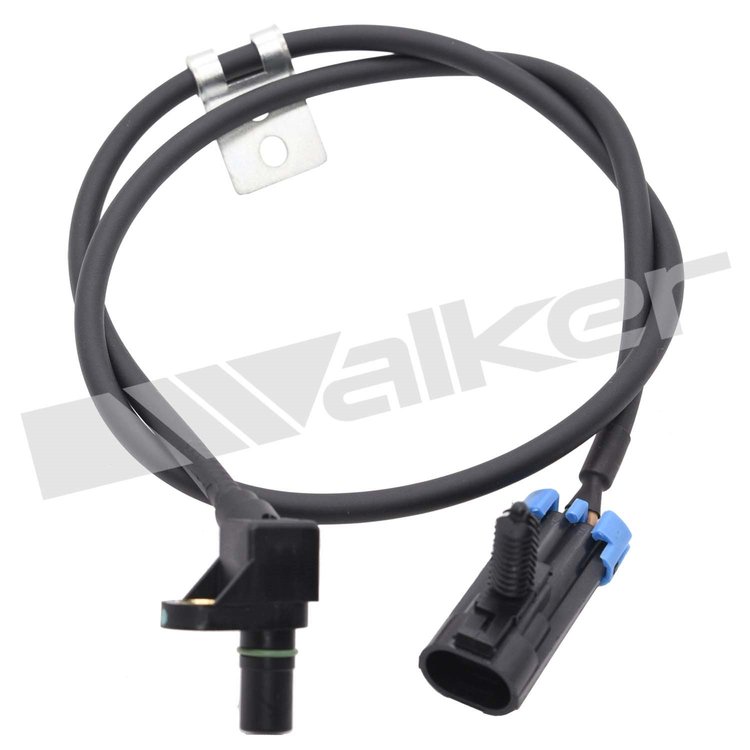

WHEEL SPEED SENSOR
$3242
ABS Wheel Speed Sensor1997-2005 Chevy S10, Blazer, GMC Jimmy, Sonoma, Isuzu Hombre, Oldsmobile Bravada Front Right, Front Left Position Female Oblong Connector Sold Individually
The replacement ABS wheel speed sensor is made for select 1997-2005 Chevy, GMC, Isuzu and Oldsmobile applications. It reads wheel rotation speed and sends the signal to the anti-lock brake module for ABS, traction and stability control.
Walker Products 241-1040 ABS Wheel Speed Sensor Features:
- Fits 1997-2004 Chevy S10; 1998-2005 Chevy Blazer; 1998-2001 GMC Jimmy; 1998-2004 GMC Sonoma; 1998-2000 Isuzu Hombre; 1997-2001 Oldsmobile Bravada
- Engine coverage includes 2.2L I4, 4.3L V6 applications
- Used in front right and front left positions, depending on application
- Female oblong electrical connector with 2 blade terminals
- 730.3 mm (28.8 in.) overall length
- Mounting hardware not included
Part TypeABS Wheel Speed Sensor
BrandWALKER PRODUCTS
Package Height3.62
Package Width4.0
Package Length28.75 in. (730.3mm)
Weight0.21 PG
Part CategoryReplacement Parts
Terminal GenderMale
Terminal TypeBlade
Connector GenderFemale
Mounting Hardware IncludedNo
Terminal Quantity2
Part FitmentDirect Fit
Connector ShapeOblong
Vendor Part Number241-1040
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
