WALKER PRODUCTSPART NUMBER: 948-245-1655

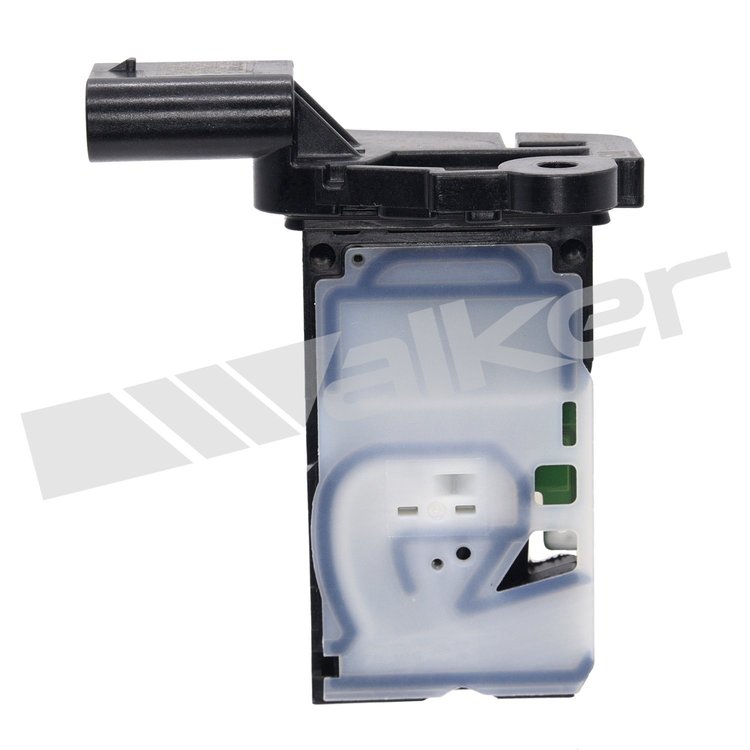

MASS AIR FLOW SENSOR
$9363
Mass Air Flow Sensor without Housing2019-2025 Buick, Cadillac, Chevy, GMC Applications Male Oblong Connector Plastic Housing Gasket or Seal Included Sold Individually
The replacement mass air flow sensor is made for select 2019-2025 Buick, Cadillac, Chevy and GMC applications. It measures the volume of air entering the engine so the engine computer can match fuel delivery to airflow; it installs into the existing housing.
Walker Products 245-1655 Mass Air Flow Sensor Features:
- Fits 2020-2024 Buick Encore GX, Cadillac CT4, XT5; 2021-2025 Buick Envision; 2019 Cadillac CT6; 2019-2024 Cadillac XT4; 2020-2023 Cadillac CT5, GMC Acadia
- Fits 2021-2024 Cadillac XT6, Chevy Trailblazer; 2020-2022 Chevy Blazer; 2023-2024 Chevy Equinox, GMC Terrain
- Engine coverage includes 1.3L I3, 1.5L I4, 2.0L I4, 2.7L I4 applications
- Male oblong electrical connector with 4 spade terminals
- Housing constructed of plastic
- 12 operating voltage
- 2 mounting holes
- Includes gasket or seal
- Mounting hardware and housing not included
Part TypeMass Air Flow Sensor
BrandWALKER PRODUCTS
Package Height2.62
Package Width2.81
Package Length5.12
Part CategoryReplacement Parts
Wiring Harness IncludedNo
Universal Or Specific FitSpecific
Housing IncludedNo
Housing MaterialPlastic
Gasket Or Seal IncludedYes
Mounting Hole Quantity2
ColorBlack
Terminal TypeSpade
Connector GenderMale
Mounting Hardware IncludedNo
Seal Quantity1
Mounting TypeBolt On
Connector ShapeOblong
Mounting Bracket IncludedNo
Terminal GenderMale
Sensor TypeMAF
Voltage12
Terminal Quantity4
Part FitmentDirect Fit
Sensor Casing Length3.13 in. (79.5mm)
Connector Quantity1
Sensor Casing Width2.55 in. (64.8mm)
Vendor Part Number245-1655
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
