Vehicle Info NeededWARNPART NUMBER: 940-17801

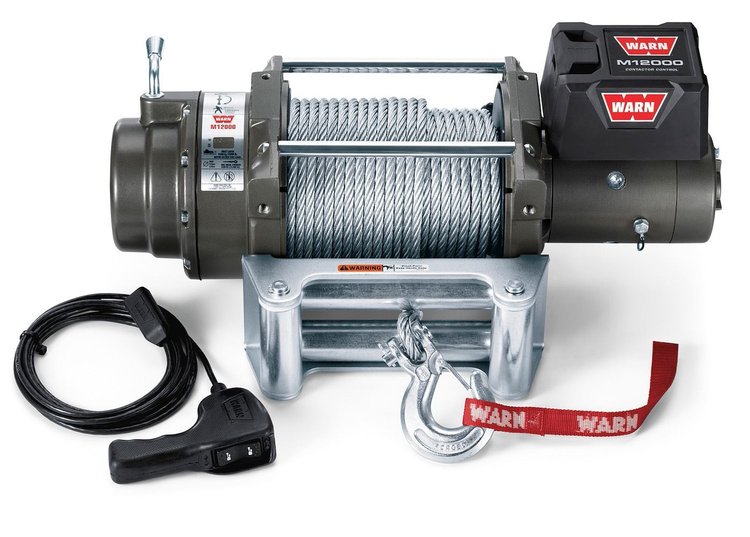

M12 Heavyweight Winch with 12,000 Lbs. Capacity
$2,40974
More than 10 available
Ships on Sep 08, 2026
Lowest Price GuaranteeM12
M12 Winch12,000 Lbs. Max Line Pull Mechanical Cone Brake 261:1 Gear Reduction 4.6 Horsepower Series-Wound Motor 125 Ft. of 3/8 In. Steel Rope Roller Fairlead Remote Switch 440 Amp Draw
WARN 17801 Features:
For heavy duty Winching needs, Warn Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is what Warn delivers- For heavy duty Winching needs, this Winch is a champion workhorse. Big torque, power and quick
- Most Powerful Winches On The Market
- Pulling Capacity Up To 16,500 Pounds
- High Strength Carrier Plates To Handle The Heavy Gear Train Stresses
- Big Torque Power
- Quick No Load Retrieval Speed 30 Foot Per Minute
- Limited lifetime warranty for mechanical parts and 7 years on the electrical?
Part TypeWinch
BrandWARN
Package Height11.5
Package Width17.0
Package Length27.0
Weight134.0 PG
Part CategoryAccessories
Jeep Jl1
Winch Line Diameter0.375 in (9.525 mm)
Part FitmentDirect Fit
Mounting Pattern Length10 in (254 mm)
Mounting Pattern Width4.5 in (114.3 mm)
Vendor Part Number17801
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
