Made in USA

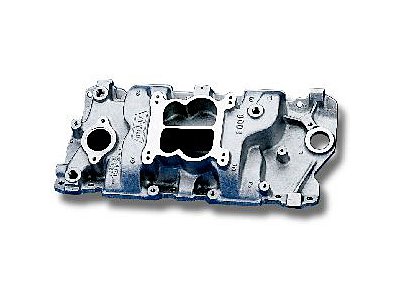

Action +Plus Intake Manifold 1987-Up with cast iron heads
Product Discontinued
WEIANDPART NUMBER: 925-8024

Action +Plus Intake Manifold 1987-Up with cast iron heads

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy 262-400ci Small Block V8
    Action +Plus Intake Manifold
  • 1987-Up with cast iron heads
  • Universal Carb Flange
  • Non-EGR
  • Idle-6000 RPM Range


  • Square bore carburetors may require adapter plate p/n 925-9006 to seal properly.
  • HEI will clear
  • Low Rise Dual Plane Design
  • Universal Mounting Flange
  • No EGR provisions
  • Power band: Idle-6000 RPM
  • Height: Front 3.50", Rear 4.00"
  • Port Size: 1.84" height, 1.12" width
  • Recommended intake gasket p/n 555-210001

Action +Plus 180° low-rise, dual-plane manifolds are ideal for stock replacement yet with improved power and torque. Their effective range is off-idle through approximately 5500+ RPM, and they work well with larger cam profiles.

Show MoreFeatures:
  • Low rise, dual plane design builds maximum torque for street performance engines
  • Permanent mold casting process for lighter, smoother, better looking and more consistent castings
  • Dyno proven to make as much as 25hp over competitors manifold
  • Square bore carburetor flange
  • Utilizes late model alternator and A/C bracket mounting provisions
  • Additional vacuum tap off of runner
  • Will clear HEI distributors
  • Exhaust crossover for improved street drivability (Standard Small Block Chevy heads)
  • Fully CNC machined for a perfect fit

In addition, some of these manifolds feature Weiand's Everbright coating. Virtually maintenance-free, this polished finish is the product of vacuum metalizing technology and protective clearcoating; looks good, lasts long.

JEGS Easy Kits are designed by JEGS Professionals to assist your shopping experience. Kit includes Weiand Intake Manifold, Intake Gaskets, Intake Bolts, Carburetor Gasket, Carburetor Studs and RTV Silicone Sealer.

Product LineWeiand Action +Plus Intake Manifolds
BrandWEIAND
Package Height7.2
Package Width12.0
Package Length25.1
Weight16.8 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
