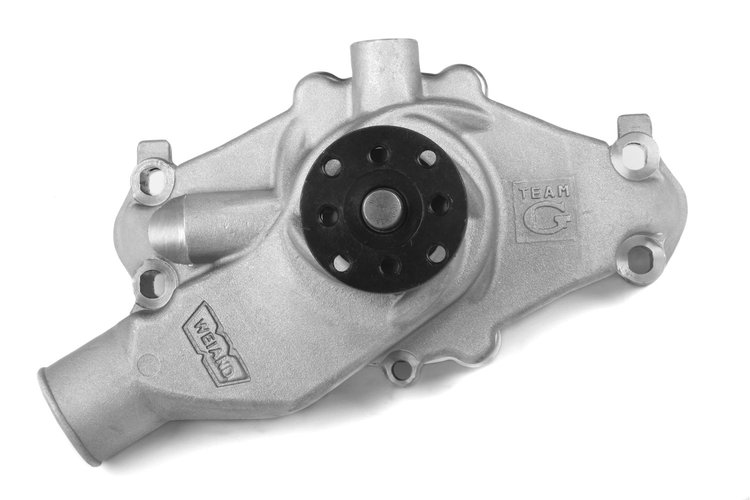

Team-G Water Pump Small Block Chevy & 90° V6

Name: Team-G Water Pump Small Block Chevy & 90° V6
Brand: WEIAND
SKU: 925-9223
Price: 248.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy Water Pumps

Small Block Chevy & 90° V6
Adjustable Mounting
Short Style
Satin Finish
Includes adjustable cam thrust stop
3/4" shaft and 5/8" fan pilot
Adjustable slotted mounting holes with locking tabs
Dimension from fan mounting hub to block surface: 5.625"
Converts to 'long style' pump with spacers, p/n 925-8207

Team-G Aluminum, Ideally Suited for Racing

Weiand water pumps have been completely redesigned for better performance and utilize their exclusive "twisted snout" look. New, not rebuilt, they are designed from the outset with premium features that will assure reliable and consistent engine cooling performance. These water pumps are built to the highest manufacturing and industry quality standards at the Holley plant in Bowling Green, KY, and then rigorously tested to assure leak-free operation.

Features:

"Adjustable" design features slotted mounting holes and locking adjusters to facilitate belt tension adjustment.
CNC machined lightweight aluminum.
3/4" diameter impeller shaft.
Eight-blade cast anti-cavitation impeller.
100% leak tested.
New twisted snout design for updated style.
Permanent mold castings for improved appearance.
Extra Heavy Duty 1/2" thick pulley hubs for maximum durability are dual drilled to fit more applications.
Zinc plated back covers and hardware for long life and corrosion resistance.
No auxiliary outlets.

Part TypeWater Pump

Product LineWeiand Team-G Water Pumps

BrandWEIAND

Package Height8.2

Package Width8.9

Package Length14.2

Weight7.2 PG

Part CategoryPerformance Parts

Pump MaterialAluminum

Pump FlowHigh-volume

TypeMechanical

Pilot Diameter0.625 in (15.9 mm)
