Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
8 in. Drop

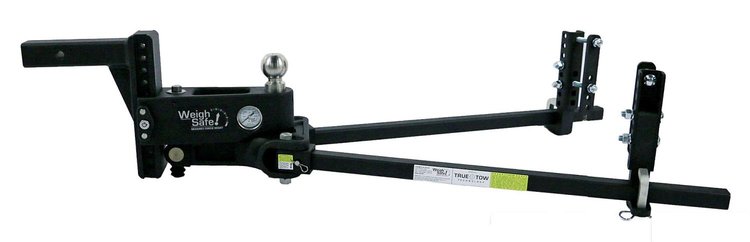

True Tow Weight Distribution Hitch with GaugeDrop Length: 8 in. Shaft Size: 2 in. GTW (Gross Trailer Weight): 15,000 lbs. Built-In Scale Height Adjustable In 1 in. Increments Includes Dual Pin Keyed Lock Assembly Keyed Alike
Features
- 2 in. shank with small bar
- Gauge to show tongue weight
- Stainless steel ball construction
- Hitch pin hole diameter: 5/8 (.625) in.
- Max tongue weight: 1,500 lbs.
- Max GTW (Gross Trailer Weight): 15,000 lbs.
- Hitch can be used in the raised or dropped position
- Keyed dual pin lock assembly included
- Keyed alike
- Live adjustment system allows for easier installations and adjustments
Note: Only compatible with 3, 4, 5, and 6 in. wide trailer frames that are up to 2.5 in. thick.
Trailer Weight Distribution Made Easy
Weigh Safe True Tow Weight Distribution Hitches take the guesswork out of towing. Featuring built-in scales, live adjustment systems, height adjustment, and anti-sway. True Tow hitches let you tow comfortably with the knowledge that your truck and trailers tongue weight is evenly distributed.
- A built-in scale to measure both tongue weight to ensure 10-15% of GTW and distributed tongue weight to truly give you a distributed towing system.
- A live adjustment system built into the head assembly with an internal pivot point that eliminates the need to remove the head assembly for re-adjustment resulting in much easier and quicker installation, anytime adjustment, not to mention it saves a significant amount of time.
Show More
- Easy height adjustment using our dual pin key lock assembly providing safety from theft and ease with 1” hole increments to provide more accurate height adjustment compared to competitors with 1.75” hole increments.
- An extended sleek design that generally gives you the ability to lower your tailgate or open your liftgate without the trailer tongue/jack interfering.
- Truly distributes the tongue weight of the trailer between the back axle of the tow vehicle, and the axle(s) of the trailer and returns the lost weight of the front axle to provide the customer a safer and smoother ride.
- Provides anti-sway friction areas that help to reduce sway caused by wind or passing vehicles. The anti-sway friction areas reside in the sway bar connection points in the head assembly and the trailer bracket connection points. The hitch head assembly, spring arms, and trailer brackets are all vital components to aid in reducing trailer sway.
- DTW (Distributed Tongue Weight) tool application for smartphones (android and IOS) or available on our website to set up the highly accurate distributed system by outputting a DTW that the Weigh Safe gauge on the hitch will read when distributed correctly.
Part TypeTrailer Hitch
Product LineWeigh Safe Weight Distribution Hitches
BrandWEIGH SAFE
Part CategoryAccessories
Hardware IncludedYes
Ball Mount IncludedYes
Receiver Style (In.)2 square
PositionRear
Maximum Gross Trailer Weight (Lbs.)15,000
QuantitySold individually
Drilling RequiredNo
Maximum Tongue Weight (Lbs.)1,500
Part FitmentSemi Universal
Vendor Part NumberWSWD8-2-KA
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
