Vehicle Info NeededWELD RACINGPART NUMBER: 927-559-5415

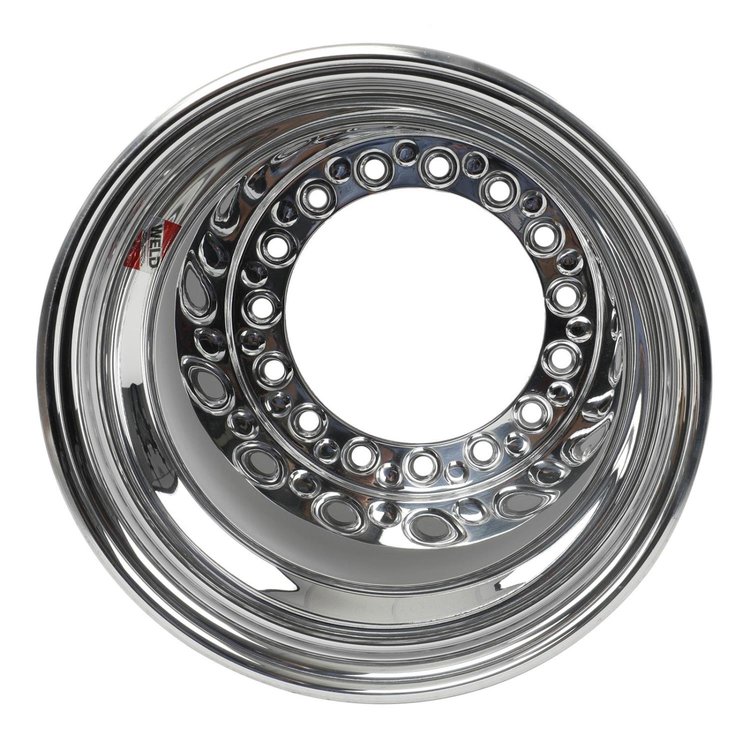

Wide-5 XL Series Non-Bead-Loc Wheel, Size: 15" x 14", Bolt Circle: 5 x 10.25"
$32900
3 left in stock
Ships on Sep 14, 2026
Lowest Price Guarantee15" x 14"
- Wide-5 XL Series Non-Bead-Loc Wheel
- Size: 15" x 14"
- Bolt Circle: 5 x 10.25"
- Rear Spacing: 5"
- M-Ring Bead-Loc Available
- Wide 5 XL .155 in. 6061-T6 Aluminum w/15/coined Lug Holes
- Roll Forged Rim Lip For Increased Bead Seat Strength
- Available In 15 in. Dia. From 10 in. To 14 in. Wide
- Made In The USA
The Wide 5 XL wheel comes standard with 0.155 in. 6061-T6 alloy rim shells making them lightweight and strong. The forged coined lug holes have three patterns to promote longevity and durability. Weld continued shaving weight without comprising strength with its Ultra-Tab mud cover, which eliminates the Bead-loc ring but still retains the Bead-loc system. If this wheel is not equipped with Bead-locks, then Weld Racing employs its proven Roll Forged lip for superior bead seat strength.
Features:
- 0.155 in. 6061-T6 Polished Aluminum Alloy
- Lightweight & Strong
- Roll Forged Lip For Superior Bead Seat Strength
- Made in Kansas City, USA!
Part TypeWheel
Product LineWeld Racing Oval Track Wide 5 XL Series Wheels
BrandWELD RACING
Package Height17.1
Package Width17.9
Package Length18.1
Weight19.66 PG
Part CategoryPerformance Parts
Valve Stems IncludedNo
Wheel Size15 x 14 in.
Hub CentricNo
Lug Nut Seat TypeConical seat - 45 degree
PositionN/A
Quantity1
Recommended Valve Stem5/8 in. Bolt-On
Recommended Valve Stem (In.)5/8 bolt-on
Wheel MaterialForged Aluminum
Primary Wheel ColorPolished
Wheel FinishPolished
Wheel Construction2-piece
Bolt Pattern5 x 10.25 in.
Backspacing5 in.
Back Spacing5 in (127 mm)
Valve Stem IncludedNo
Primary Wheel FinishPolished
Center Cap IncludedNo
Wheel Bolt Pattern5 x 10 1/4 (260.35 mm)
Wheel Diameter15 in.
Lug Nut Seat StyleConical seat - 45 degree
Wheel TypeCircle Track Wheels
Part FitmentUniversal
Wheel Width14 in.
Vendor Part Number559-5415
Package Qty1
Package TypeEA
