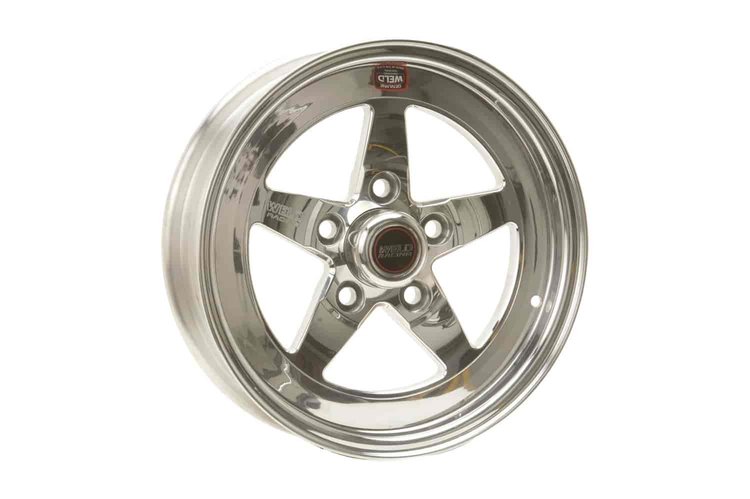

Vehicle Info NeededWELD RACINGPART NUMBER: 927-71LP-504B25A
RT-S Series Wheel Size: 15" x 4"
$76500
1 left in stock
Ships on Sep 08, 2026
Lowest Price Guarantee15" x 4" WheelsLow Pad
- RT-S Series Wheel
- Size: 15" x 4"
- Bolt Circle: 5 x 4-3/4"
- Back Space: 2-1/2"
- Center cap and valve stem included
- 15" diameter wheels are designed for a 5/8" drive stud or short shank (.500) mag style lug nuts
- 17", 18", 20" diameter wheels and wheels with a 4-Lug or 5x5" Bolt Patterns require conical lug nuts
Weld Racing brings its application flexible racing technology to the street with a budget friendly 3-piece modular wheel using a unique welded assembly process. This wheel has the classic Weld Racing 5-spoke star look and continues the Weld Racing tradition utilizing a forged billet center and cold forged rim shells. This unique wheel offers 3 mounting pad heights to clear specific drum and multi-piston opposed calipers.
Show More
Pad Heights:
- The low pad wheels fit cars with drum brakes, early disc brakes and aftermarket drag racing brake systems.
- The medium pad fits the high performance factory brake systems first seen in 1965 on Corvettes and on other performance cars from the late 1980's onward, along with many aftermarket brake systems.
- The high pad is designed for modern super cars with fixed opposed piston calipers such as factory installed Brembo systems and the road racing capable aftermarket systems from Baer, Brembo, Wilwood, and many others.
Features: - Surpasses SFI 15.1 Drag Race Drive Wheel Specifications (15" diameter only) & SAE J2530 Aftermarket Wheel (Street) Standards
- Black Anodized Center
- Wheel widths from 4" to 18" with a wide variety of back spacings
- Load rating of 1,580 lbs per wheel (3,160 lbs per axle)
- Made in Kansas City, USA
Weld Racing RT_S Series Black anodized Finish Wheels are also available in Black Anodized Finish
Part TypeWheel
Product LineWeld Racing RT-S Series S71 Polished Wheels
BrandWELD RACING
Package Height9.0
Package Width18.2
Package Length18.2
Weight15.2 PG
Part CategoryPerformance Parts
Valve Stems IncludedYes
Wheel Size15 x 4 in.
Hub CentricNo
PositionFront
Lug Nut Seat TypeShank
Valve Stem MaterialSteel
Washer Outside Diameter1.25 in.
Quantity1
Primary Wheel ColorPolished
Wheel FinishPolished
Wheel Construction3-piece
Bolt Pattern5 X 4.75 in.
Back Spacing2.5 in (63.5 mm)
Valve Stem FinishChrome
Lug Nut Shank Diameter0.679 to 0.687 in.
Backspacing2.5 in.
Lug Nut Shank Length0.49 to 0.55 in.
Lug Nut Shank Length (In.)0.490-0.550
Valve Stem IncludedYes
Center Bore Diameter3.18 In.
Primary Wheel FinishPolished
Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
Center Cap IncludedYes
Lug Nut Seat StyleShank
Wheel Diameter15 in.
Lug Nut Shank Diameter (In.)0.679-0.687
Wheel TypeCar Street, Strip Wheels
Part FitmentUniversal
Wheel Width3.95 In.
Vendor Part Number71LP-504B25A
Package Qty1
Package TypeEA
