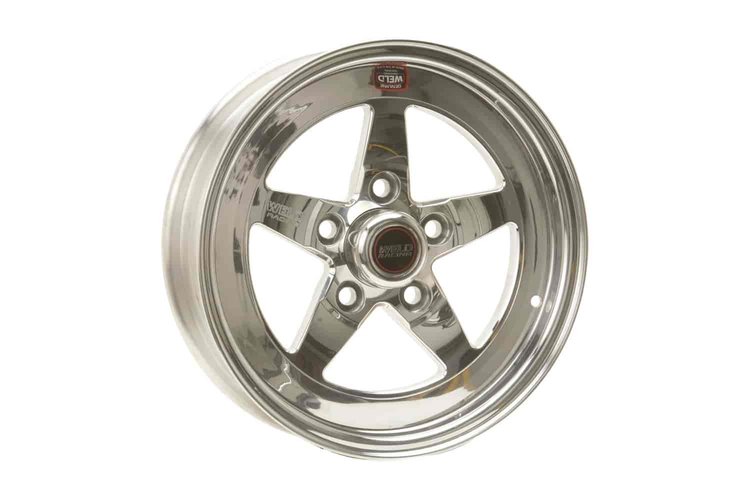

Vehicle Info NeededWELD RACINGPART NUMBER: 927-71LP-510B35A
RT-S Series Wheel Size: 15" x 10"
$86900
Ships on 11/27/2026
Lowest Price Guarantee15" x 10" WheelsLow Pad
- RT-S Series Wheel
- Size: 15" x 10"
- Bolt Circle: 5 x 4-3/4"
- Back Space: 3-1/2"
- Center cap and valve stem included
- 15" diameter wheels are designed for a 5/8" drive stud or short shank (.500) mag style lug nuts
- 17", 18", 20" diameter wheels and wheels with a 4-Lug or 5x5" Bolt Patterns require conical lug nuts
Weld Racing brings its application flexible racing technology to the street with a budget friendly 3-piece modular wheel using a unique welded assembly process. This wheel has the classic Weld Racing 5-spoke star look and continues the Weld Racing tradition utilizing a forged billet center and cold forged rim shells. This unique wheel offers 3 mounting pad heights to clear specific drum and multi-piston opposed calipers.
Show More
Pad Heights:
- The low pad wheels fit cars with drum brakes, early disc brakes and aftermarket drag racing brake systems.
- The medium pad fits the high performance factory brake systems first seen in 1965 on Corvettes and on other performance cars from the late 1980's onward, along with many aftermarket brake systems.
- The high pad is designed for modern super cars with fixed opposed piston calipers such as factory installed Brembo systems and the road racing capable aftermarket systems from Baer, Brembo, Wilwood, and many others.
Features: - Surpasses SFI 15.1 Drag Race Drive Wheel Specifications (15" diameter only) & SAE J2530 Aftermarket Wheel (Street) Standards
- Black Anodized Center
- Wheel widths from 4" to 18" with a wide variety of back spacings
- Load rating of 1,580 lbs per wheel (3,160 lbs per axle)
- Made in Kansas City, USA
Weld Racing RT_S Series Black anodized Finish Wheels are also available in Black Anodized Finish
Part TypeWheel
Product LineWeld Racing RT-S Series S71 Polished Wheels
BrandWELD RACING
Package Height13.1
Package Width18.0
Package Length18.2
Weight18.49 PG
Part CategoryPerformance Parts
Valve Stems IncludedYes
Wheel Size15 x 10.33 in.
Hub CentricNo
Lug Nut Seat TypeShank
PositionN/A
Valve Stem MaterialSteel
Washer Outside Diameter1.25 in.
Quantity1
Wheel FinishPolished
Primary Wheel ColorPolished
Wheel Construction3-piece
Bolt Pattern5 X 4.75 in.
Valve Stem FinishChrome
Back Spacing3.5 in (88.9 mm)
Lug Nut Shank Diameter0.679 to 0.687 in.
Backspacing3.5 in.
Lug Nut Shank Length0.49 to 0.55 in.
Valve Stem IncludedYes
Center Bore Diameter3.18 In.
Lug Nut Shank Length (In.)0.490-0.550
Primary Wheel FinishPolished
Center Cap IncludedYes
Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
Lug Nut Seat StyleShank
Wheel Diameter15 in.
Wheel TypeCar Street, Strip Wheels
Lug Nut Shank Diameter (In.)0.679-0.687
Part FitmentUniversal
Wheel Width10.275 in.
Vendor Part Number71LP-510B35A
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
