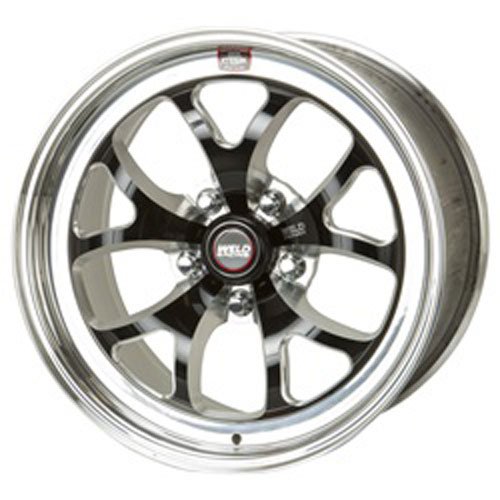

RT-S Series S76 Wheel [Size: 20 in. x 11 in.]
InfoVehicle Info Needed
WELD RACINGPART NUMBER: 927-76HB0110W58A

RT-S Series S76 Wheel [Size: 20 in. x 11 in.]

$1,17257$1349.00You Save$176.43
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

20" x 11" Wheels
  • High Pad
      • RT-S Series S76 Wheel
    • Size: 20 in. x 11 in.
    • Bolt Pattern: 5 x 115 mm
    • Back Spacing: 5.8 in.
    • Offset: -6 mm
    • Center Bore: 3.18 in.
    • Finish: Polished Shell w/Black Center
    • Center Cap Included

    • Minimal Weight for Maximum Performance
    • Specifically Designed for Modern Muscle Cars
    • Custom Wheel Versatility for Precise Fit
    • Forged Centers and Rim Shells for Superior Strength
    • High Pad Center for the Largest Brake Packages
    • Matching Push Thru Center Cap Included
    • Valve Stem Included
    • Lug Nuts Sold Separately

    High-Quality Modular Wheels

    Weld Racing brings its racing technology to the street with a budget-friendly 3-piece modular wheel that uses a unique welded assembly process. This wheel has the classic Weld Racing 5-spoke star, cold-forged rim shells, and forged billet center. This unique wheel offers three mounting pad heights to clear specific drum and multi-piston opposed calipers.

    Show More

    Pad Heights

    • The medium pad fits the high performance factory brake systems first seen in 1965 on Corvettes and on other performance cars from the late 1980s onward, along with many aftermarket brake systems.
    • The high pad is designed for modern super cars with fixed opposed piston calipers such as factory installed Brembo systems and the road racing capable aftermarket systems from Baer, Brembo, Wilwood, and many others.

    Features

    • SAE J2530 Aftermarket Wheel (Street) Standards
    • Center is available in black anodized
    • Wheel widths from 4.5" to 18" with a wide variety of back spacings
    • Load rating of 1580 lbs per wheel (3160 lbs per axle)
    • Center cap and valve stem included
    • Made in Kansas City, USA
      Notes:
    • 15" diameter wheels are designed for short shank (.500) mag style lug nuts, they WILL NOT accept 5/8" drive studs
    • 17", 18", and 20" diameter wheels require conical lug nuts
    Part TypeWheel
    Product LineWeld Racing RT-S Series S76 Black Wheels
    BrandWELD RACING
    Package Height16.0
    Package Width26.0
    Package Length27.0
    Weight34.36 PG
    Part CategoryPerformance Parts
    Wheel Size20 x 11 in.
    Lug Nut Seat TypeConical seat - 60 degree
    PositionN/A
    Quantity1
    Wheel FinishPolished
    Back Spacing5.8 in (147.32 mm)
    Bolt Pattern5 x 115 mm
    Offset-0.236 in.
    Backspacing5.8 in.
    Center Bore Diameter3.18 In.
    Wheel Bolt Pattern5 x 115 mm
    Lug Nut Seat StyleConical seat - 60 degree
    Wheel Diameter20 in.
    Wheel TypeCar Street, Strip Wheels
    Part FitmentUniversal
    Wheel Offset-6 mm (-.2362 in)
    Wheel Width11 in.
    Vendor Part Number76HB0110W58A
    Package Qty1
    Package TypeEA
