![RT-S Series S76 Wheel [Size: 17 in. x 10 in.]](https://www.jegs.com/images/mini_750/900/927/927-76hb7100w67a.jpg)
Vehicle Info NeededWELD RACINGPART NUMBER: 927-76HB7100W67A

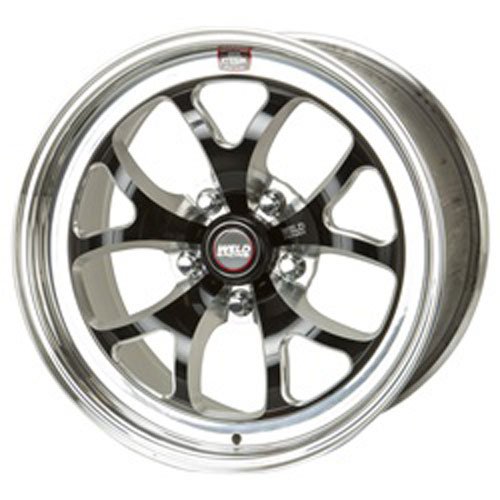

RT-S Series S76 Wheel [Size: 17 in. x 10 in.]
$96397$1109.00You Save$145.03
2 left in stock
Ships on Nov 02, 2026
Lowest Price Guarantee17" x 10" WheelsHigh Pad
- RT-S Series S76 Wheel
- Size: 17 in. x 10 in.
- Bolt Pattern: 5 x 115 mm
- Back Spacing: 6.7 in.
- Offset: 30 mm
- Center Bore: 3.18 in.
- Finish: Polished Shell w/Black Center
- Center Cap Included
- Minimal Weight for Maximum Performance
- Specifically Designed for Modern Muscle Cars
- Custom Wheel Versatility for Precise Fit
- Forged Centers and Rim Shells for Superior Strength
- High Pad Center for the Largest Brake Packages
- Matching Push Thru Center Cap Included
- Valve Stem Included
- Lug Nuts Sold Separately
High-Quality Modular Wheels
Weld Racing brings its racing technology to the street with a budget-friendly 3-piece modular wheel that uses a unique welded assembly process. This wheel has the classic Weld Racing 5-spoke star, cold-forged rim shells, and forged billet center. This unique wheel offers three mounting pad heights to clear specific drum and multi-piston opposed calipers.
Show More
Pad Heights
- The medium pad fits the high performance factory brake systems first seen in 1965 on Corvettes and on other performance cars from the late 1980s onward, along with many aftermarket brake systems.
- The high pad is designed for modern super cars with fixed opposed piston calipers such as factory installed Brembo systems and the road racing capable aftermarket systems from Baer, Brembo, Wilwood, and many others.
Features
- SAE J2530 Aftermarket Wheel (Street) Standards
- Center is available in black anodized
- Wheel widths from 4.5" to 18" with a wide variety of back spacings
- Load rating of 1580 lbs per wheel (3160 lbs per axle)
- Center cap and valve stem included
- Made in Kansas City, USA
Notes: - 15" diameter wheels are designed for short shank (.500) mag style lug nuts, they WILL NOT accept 5/8" drive studs
- 17", 18", and 20" diameter wheels require conical lug nuts
Part TypeWheel
Product LineWeld Racing RT-S Series S76 Black Wheels
BrandWELD RACING
Package Height13.0
Package Width24.0
Package Length25.0
Weight28.4 PG
Part CategoryPerformance Parts
Valve Stems IncludedYes
Wheel Size17 x 10 in.
PositionRear
Lug Nut Seat TypeConical seat - 60 degree
Quantity1
Wheel FinishPolished
Back Spacing6.7 in (170.18 mm)
Bolt Pattern5 x 115 mm
Offset1.181 in.
Backspacing6.7 in.
Valve Stem IncludedYes
Wheel Bolt Pattern5 x 115 mm
Center Cap IncludedYes
Lug Nut Seat StyleConical seat - 60 degree
Wheel Diameter17 in.
Wheel Offset30 mm (1.1811 in)
Wheel TypeCar Street, Strip Wheels
Part FitmentUniversal
Wheel Width10 in.
Vendor Part Number76HB7100W67A
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
