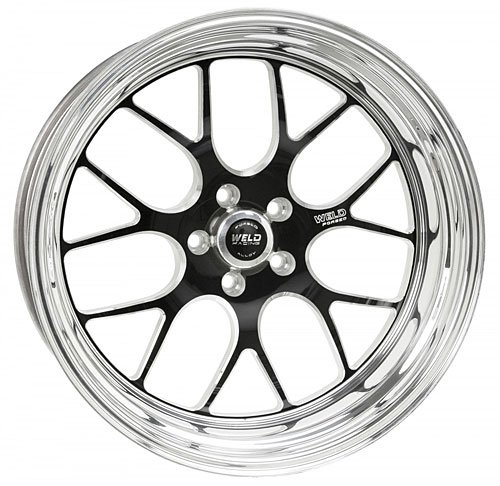

Vehicle Info NeededWELD RACINGPART NUMBER: 927-77HB0090N63A
RT-S Series Wheel Size: 20" x 9"
$1,21500
Ships on 11/27/2026
Lowest Price Guarantee20" x 9" WheelsHigh Pad
- RT-S Series S77 Black Wheel
- Size: 20" x 9"
- Bolt Circle: 5 x 120mm
- Back Space: 6.30"
- Minimal Weight for Maximum Performance
- Specifically Designed for Modern Muscle Cars
- Custom Wheel Versatility for Precise Fit
- Forged Centers and Rim Shells for Superior Strength
- High Pad Center for the Largest Brake Packages
- Matching Push Thru Center Cap Included
- Valve Stem Included
- Lug Nuts Sold Separately
Unique Race-Ready Wheel
Weld Racing RT-S Series S77 Black Wheels brings the application of flexible racing technology to the street with a budget-friendly 3-piece modular wheel using a unique welded assembly process. This wheel has the classic Weld Racing Multi-spoke look and continues the Weld Racing tradition by utilizing a forged billet center and cold forged rim shells. This unique wheel offers three mounting pad heights to clear specific drum and multi-piston opposed calipers.
Show More
Pad Heights:
- The low pad wheels fit cars with drum brakes, early disc brakes, and aftermarket drag racing brake systems.
- The medium pad fits the high-performance factory brake systems first seen in 1965 on Corvettes and on other performance cars from the late 1980s onward, along with many aftermarket brake systems.
- The high pad is designed for modern supercars with fixed opposed piston calipers such as factory-installed Brembo systems and the road racing capable aftermarket systems from Baer, Brembo, Wilwood, and many others.
Features:
- Surpasses SFI 15.1 Drag Race Drive Wheel Specifications (15" diameter only) & SAE J2530 Aftermarket Wheel (Street) Standards
- Black Anodized Center
- Wheel widths from 4" to 18" with a wide variety of back spacings
- Load rating of 1,580 lbs per wheel (3,160 lbs per axle)
- Center cap and valve stem included
Notes:
- 15" diameter wheels are designed for a 5/8" drive stud or short shank (.500) mag-style lug nuts
- 17", 18", and 20" diameter wheels require conical lug nuts
Part TypeWheel
Product LineWeld Racing RT-S Series S77 Black Wheels
BrandWELD RACING
Package Height14.0
Package Width27.0
Package Length27.0
Weight32.0 PG
Part CategoryPerformance Parts
Wheel Size20 x 9 in.
Backspacing6.3 in.
PositionFront
Lug Nut Seat TypeConical seat - 60 degree
Quantity1
Wheel Bolt Pattern5 x 120 mm
Lug Nut Seat StyleConical seat - 60 degree
Wheel Diameter20 in.
Wheel TypeCar Street, Strip Wheels
Part FitmentUniversal
Wheel Width9 In.
Wheel FinishPolished
Back Spacing6.3 in (160.02 mm)
Bolt Pattern5 x 120 mm
Vendor Part Number77HB0090N63A
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
