![RT-S Series S77 Wheel [Size: 18 in. x 4.5 in.]](https://www.jegs.com/images/mini_750/900/927/927-77hb8045a16a.jpg)
Vehicle Info NeededWELD RACINGPART NUMBER: 927-77HB8045A16A

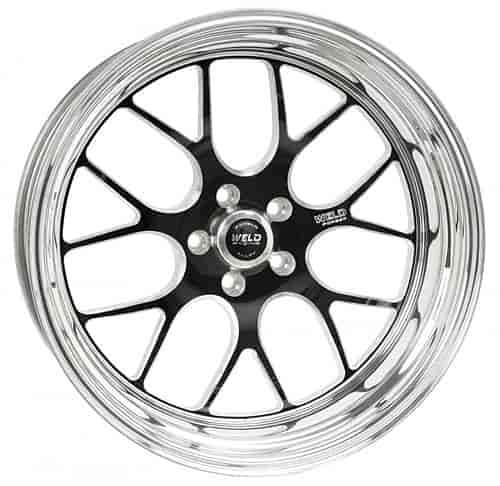

RT-S Series S77 Wheel [Size: 18 in. x 4.5 in.]
$90837$1045.00You Save$136.63
1 left in stock
Ships on Nov 02, 2026
Lowest Price Guarantee18" x 4.5" WheelsHigh Pad
RT-S Series S77 WheelSize: 18 in. x 4.5 in. Bolt Pattern: 5 x 4.5 in. Back Spacing: 1.6 in. Offset: -29 mm Finish: Polished Shell w/Black Center Center Cap Included
Weld Racing 77HB8045A16A RT-S Series S77 Wheel Features:
- Minimal Weight for Maximum Performance
- Specifically Designed for Modern Muscle Cars
- Custom Wheel Versatility for Precise Fit
- Forged Centers and Rim Shells for Superior Strength
- High Pad Center for the Largest Brake Packages
- Matching Push Thru Center Cap Included
- Valve Stem Included
- Lug Nuts Sold Separately
Unique Race-Ready Wheel
Weld Racing RT-S Series S77 Black Wheels brings the application of flexible racing technology to the street with a budget-friendly 3-piece modular wheel using a unique welded assembly process. This wheel has the classic Weld Racing Multi-spoke look and continues the Weld Racing tradition by utilizing a forged billet center and cold forged rim shells. This unique wheel offers three mounting pad heights to clear specific drum and multi-piston opposed calipers.
Show More
Pad Heights:
- The low pad wheels fit cars with drum brakes, early disc brakes, and aftermarket drag racing brake systems.
- The medium pad fits the high-performance factory brake systems first seen in 1965 on Corvettes and on other performance cars from the late 1980s onward, along with many aftermarket brake systems.
- The high pad is designed for modern supercars with fixed opposed piston calipers such as factory-installed Brembo systems and the road racing capable aftermarket systems from Baer, Brembo, Wilwood, and many others.
Features:
- Surpasses SFI 15.1 Drag Race Drive Wheel Specifications (15" diameter only) & SAE J2530 Aftermarket Wheel (Street) Standards
- Black Anodized Center
- Wheel widths from 4" to 18" with a wide variety of back spacings
- Load rating of 1,580 lbs per wheel (3,160 lbs per axle)
- Center cap and valve stem included
Notes:
- 15" diameter wheels are designed for a 5/8" drive stud or short shank (.500) mag-style lug nuts
- 17", 18", and 20" diameter wheels require conical lug nuts
Part TypeWheel
Product LineWeld Racing RT-S Series S77 Black Wheels
BrandWELD RACING
Package Height6.6
Package Width20.1
Package Length20.5
Weight19.66 PG
Part CategoryPerformance Parts
Valve Stems IncludedYes
Wheel Size18 x 4.5 in.
Lug Nut Seat TypeConical seat - 60 degree
Quantity1
Wheel FinishPolished
Back Spacing1.6 in (40.64 mm)
Offset-1.141 in.
Backspacing1.6 in.
Valve Stem IncludedYes
Center Cap IncludedYes
Lug Nut Seat StyleConical seat - 60 degree
Wheel Diameter18 in.
Wheel Offset-29 mm (-1.1417 in)
Wheel TypeCar Street, Strip Wheels
Part FitmentUniversal
Wheel Width4.5 in.
Vendor Part Number77HB8045A16A
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
