![RT-S Series S77 Wheel [Size: 20 in. x 12.5 in.]](https://www.jegs.com/images/mini_750/900/927/927-77mb0125w34a.jpg)
Vehicle Info NeededWELD RACINGPART NUMBER: 927-77MB0125W34A

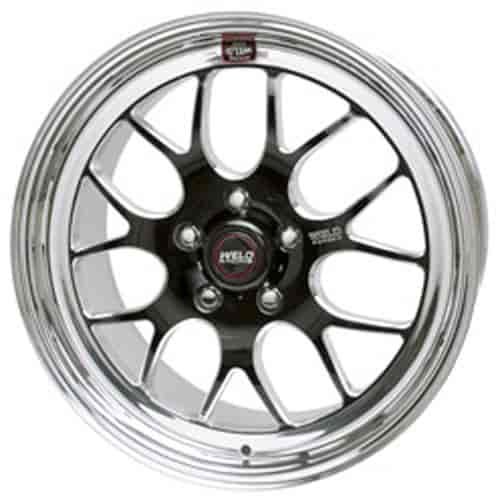

RT-S Series S77 Wheel [Size: 20 in. x 12.5 in.]
$1,37500
1 left in stock
Ships Today
Lowest Price Guarantee20" x 12-1/2" WheelsMedium Pad
RT-S Series S77 WheelSize: 20 in. x 12.5 in. Bolt Pattern: 5 x 115 mm Back Spacing: 3.4 in. Offset: -86 mm Finish: Polished Shell w/Black Center Center Cap Included
- Minimal Weight for Maximum Performance
- Specifically Designed for Modern Muscle Cars
- Custom Wheel Versatility for Precise Fit
- Forged Centers and Rim Shells for Superior Strength
- Medium Pad Center for Factory High Performance Brake Systems
- Matching Push Thru Center Cap Included
- Valve Stem Included
- Lug Nuts Sold Separately
Unique Race-Ready Wheel
Weld Racing RT-S Series S77 Black Wheels brings the application of flexible racing technology to the street with a budget-friendly 3-piece modular wheel using a unique welded assembly process. This wheel has the classic Weld Racing Multi-spoke look and continues the Weld Racing tradition by utilizing a forged billet center and cold forged rim shells. This unique wheel offers three mounting pad heights to clear specific drum and multi-piston opposed calipers.
Show More
Pad Heights:
- The low pad wheels fit cars with drum brakes, early disc brakes, and aftermarket drag racing brake systems.
- The medium pad fits the high-performance factory brake systems first seen in 1965 on Corvettes and on other performance cars from the late 1980s onward, along with many aftermarket brake systems.
- The high pad is designed for modern supercars with fixed opposed piston calipers such as factory-installed Brembo systems and the road racing capable aftermarket systems from Baer, Brembo, Wilwood, and many others.
Features:
- Surpasses SFI 15.1 Drag Race Drive Wheel Specifications (15" diameter only) & SAE J2530 Aftermarket Wheel (Street) Standards
- Black Anodized Center
- Wheel widths from 4" to 18" with a wide variety of back spacings
- Load rating of 1,580 lbs per wheel (3,160 lbs per axle)
- Center cap and valve stem included
Notes:
- 15" diameter wheels are designed for a 5/8" drive stud or short shank (.500) mag-style lug nuts
- 17", 18", and 20" diameter wheels require conical lug nuts
Part TypeWheel
Product LineWeld Racing RT-S Series S77 Black Wheels
BrandWELD RACING
Package Height14.33
Package Width19.0
Package Length19.0
Weight7.0 PG
Part CategoryPerformance Parts
Valve Stems IncludedYes
Wheel Size20 x 12.5 in.
Lug Nut Seat TypeConical seat - 60 degree
PositionN/A
Quantity1
Wheel FinishPolished
Offset-3.385 in.
Back Spacing3.4 in (86.36 mm)
Backspacing3.4 In.
Valve Stem IncludedYes
Center Cap IncludedYes
Lug Nut Seat StyleConical seat - 60 degree
Wheel Diameter20 in.
Wheel TypeCar Street, Strip Wheels
Part FitmentUniversal
Wheel Offset-86 mm (-3.3858 in)
Wheel Width12.5 In.
Vendor Part NumberRT-S - S77 20X12.5 5X115
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
