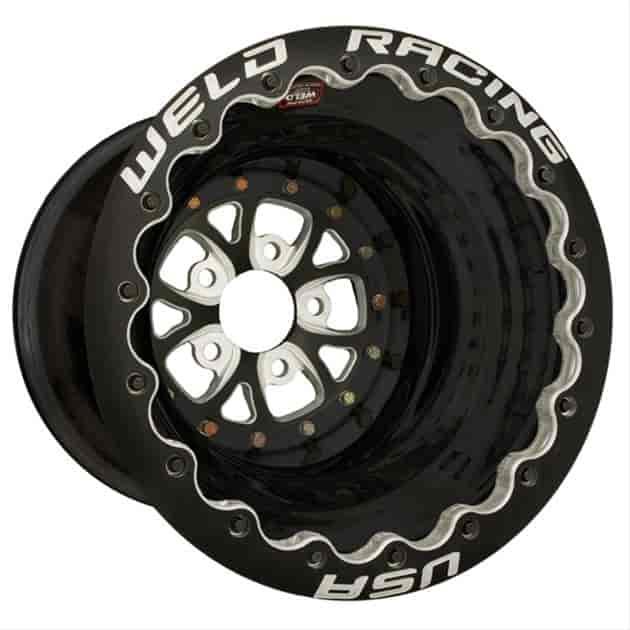

V-SERIES 16X16 5X5 5RS BL
InfoVehicle Info Needed
WELD RACINGPART NUMBER: 927-84B616B280UB

V-SERIES 16X16 5X5 5RS BL

$2,33500
ShippingShips on 11/27/2026
Lowest PriceLowest Price Guarantee

    V-SERIES 16X16 5X5 5RS BL

Weld Racing V-Series wheels will add a ton of unique style to your race car. The V-series follow the heritage of the race-winning Weld Magnum and Aluma Star wheels with a unique and innovative design that took nearly a year to perfect. These black anodized with machined accents finish wheels feature a three piece construction with polished aluminum rim shells, forged 6061-T6 centers and single beadlocks. All V-Series wheels meet and exceed 15.1 SFI requirements with the spindle mount front wheels exceeding SFI 15.2 specifications! Weld Racing V-Series wheels retain structural integrity for strip use that exhibits strength and stability while providing a lighter alternative to a cast constructed wheel. Made in the U.S.A.

Show More

Features:

  • Black Anodized w/Machined Accents Finish
  • Center Cap not included (sold separately)
  • Require .500" long x .680" diameter mag shank lug nuts or 5/8" Drive Studs (sold separately)
  • Single Beadlock for Street/Strip Use

Weld Racing V-Series Black Finish Wheels are also available in Non-Beadlock and Double Beadlock


Part TypeWheel
Product LineWeld Racing V-Series Black Finish Single Beadlock Wheels
BrandWELD RACING
Package Height18.9
Package Width19.3
Package Length19.7
Weight26.36 PG
Part CategoryAccessories
Valve Stems IncludedNo
Wheel Size16x16
Hub CentricNo
Lug Nut Seat TypeShank
Washer Outside Diameter1.3 in.
Quantity1
Recommended Valve Stem (In.)5/8 bolt-on
Recommended Valve Stem5/8 in. Bolt-On
Primary Wheel ColorBlack
Wheel FinishBlack Anodized
Functional BeadlockYes
Bolt Pattern5 X 4.75 in.
Wheel Construction3-piece
Back Spacing5.0 in.
Beadlock IncludedYes
Offset-3.503 in.
Lug Nut Shank Diameter0.68 to 0.687 in.
Backspacing5 in.
Beadlock FunctionalYes
Center Cap IncludedNo
Lug Nut Shank Length0.49 to 0.55 in.
Lug Nut Shank Length (In.)0.490-0.550
Valve Stem IncludedNo
Center Bore Diameter3.18 in.
Wheel Diameter16 in.
Lug Nut Seat StyleShank
Wheel Bolt Pattern5x4.75 in.
Wheel Offset-88.9mm
Wheel TypeDrag Race Wheels
Part FitmentUniversal
Lug Nut Shank Diameter (In.)0.680-0.687
Wheel Width16 in.
Vendor Part Number84B-616B280UB
Package Qty1
Package TypeEA
