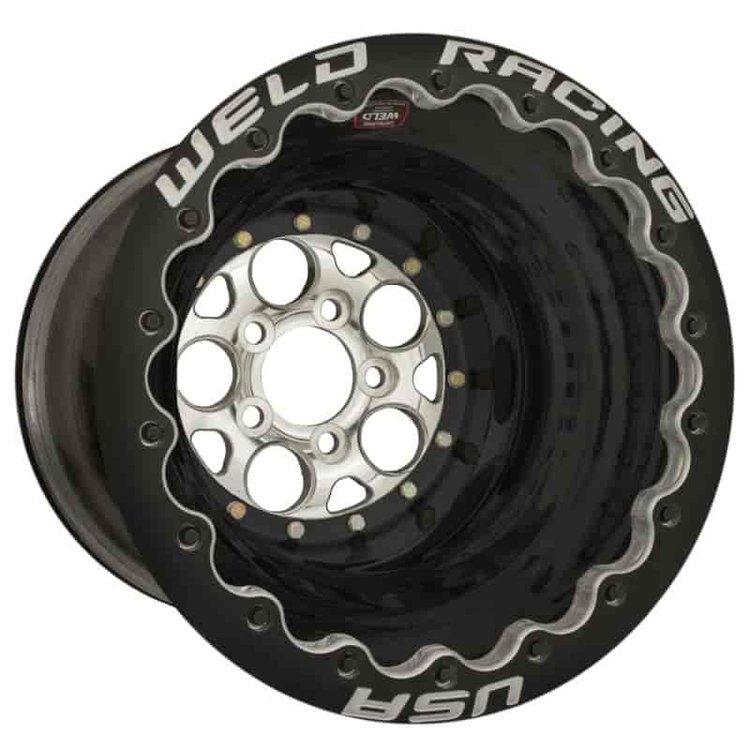

Magnum Drag 2.0 Double Beadlock Wheel 5 Lug 4" RS
InfoVehicle Info Needed
WELD RACINGPART NUMBER: 927-86P616B278UP

Magnum Drag 2.0 Double Beadlock Wheel 5 Lug 4" RS

$2,33500
ShippingShips on 11/30/2026
Lowest PriceLowest Price Guarantee

16" x 16"
    Weld Racing Magnum Drag 2.0 Double Beadlock Wheel
  • Size: 16" x 16"
  • Bolt Pattern: 5 x 4-3/4"
  • Rear Space: 4"
  • Finish: Polished Center w/Black Shell
  • Polished Beadlocks
  • Center Cap not included (sold separately)
  • Require .500" long x .680" diameter mag shank lug nuts or 5/8" Drive Studs (sold separately)

The Weld Racing Magnum Drag 2.0 Polished Finish Double Beadlock Wheels are one of the original high tech drag racing wheels. Perfect for sportsman door cars, roadsters and dragsters, the Magnum Drag 2.0 is one of the lightest, strongest, and truest drag race wheels available today. With virtually no run-out these wheels are so balanced and consistent you will feel the difference your first pass. These wheels feature a three piece construction with polished aluminum rim shells, forged 6061-T6 polished finish centers and a single beadlock. All Magnum Drag 2.0 wheels meet and exceed 15.1 SFI requirements with the spindle mount front wheels exceeding SFI 15.2 specifications! Weld Racing is America's #1 professional drag racing wheel and the Magnum Drag 2.0 series wheels are no exception. They retain the structural integrity required for strip use, exhibiting superior strength and stability while providing a lighter alternative to a cast constructed wheel.

Show More

Made in the U.S.A.

Features:

  • Polished Finish
  • Double Beadlock for Street/Strip Use

Weld Racing Magnum Drag 2.0 Series Polished Finish Wheels are also available in Non-Beadlock and Single Beadlock

Part TypeWheel
Product LineWeld Racing Magnum Drag 2.0 Polished Finish Double Beadlock Wheels
BrandWELD RACING
Package Height19.0
Package Width19.0
Package Length20.0
Weight26.45 PG
Part CategoryPerformance Parts
Hub CentricNo
Valve Stems IncludedNo
Lug Nut Seat TypeShank
Washer Outside Diameter1.3 in.
Quantity1
Recommended Valve Stem (In.)5/8 bolt-on
Recommended Valve Stem5/8 in. Bolt-On
Primary Wheel ColorPolished
Wheel FinishPolished
Wheel Construction3-piece
Functional BeadlockYes
Back Spacing4 in (101.6 mm)
Bolt Pattern5 X 4.75 in.
Offset-4.488 in.
Lug Nut Shank Diameter0.68 to 0.687 in.
Beadlock FunctionalYes
Beadlock IncludedYes
Backspacing4 In.
Lug Nut Shank Length0.49 to 0.55 in.
Lug Nut Shank Length (In.)0.490-0.550
Valve Stem IncludedNo
Center Bore Diameter3.5 in.
Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
Lug Nut Seat StyleShank
Primary Wheel FinishPolished
Center Cap IncludedNo
Wheel Diameter16 in.
Wheel Offset-114 mm (-4.4882 in)
Lug Nut Shank Diameter (In.)0.680-0.687
Wheel TypeDrag Race Wheels
Part FitmentUniversal
Wheel Width16 in.
Vendor Part Number86P-616B278UP
Package Qty1
Package TypeEA
