Vehicle Info NeededWELD RACINGPART NUMBER: 927-90-512356

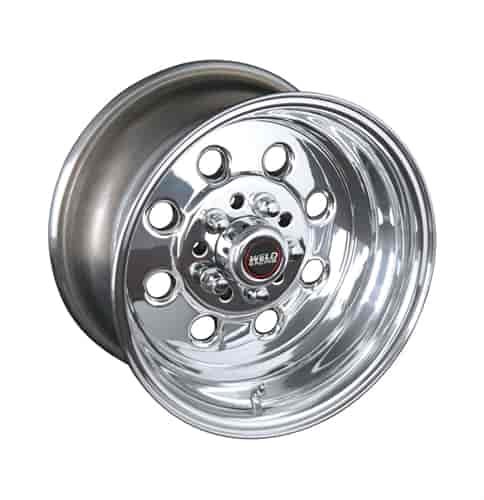

Sport Forged Draglite Wheel 5 Lug 8.5 RS
$62500
Ships on 10/15/2026
Lowest Price Guarantee15'' x 12'' Wheels
- Sport Forged Draglite 90-Series Wheel
- Size: 15'' x 12''
- Bolt Circle: 5 x 4-1/2'', 4-3/4''
- Rear Spacing: 8-1/2''
- +51mm Offset
- Polished Center and Shell
- Center Cap Included
Part TypeWheel
BrandWELD RACING
Package Height15.1
Package Width17.9
Package Length18.2
Weight21.12 PG
Part CategoryPerformance Parts
Valve Stems IncludedYes
Wheel Size15 x 12 in.
Valve Stem MaterialRubber
Wheel FinishPolished
Wheel Construction2-piece
Lug Nut Shank Length1.3 to 1.38 in.
Center Bore Diameter3.18 In.
Valve Stem FinishBlack
Center Cap IncludedYes
Wheel Diameter15 in.
Wheel Width12 in.
Hub CentricNo
Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
Lug Nut Seat StyleShank
Lug Nut Seat TypeShank
Load Rating (Lbs.)1,200
Wheel Offset51 mm (2.0079 in)
Lug Nut Shank Diameter (In.)0.679-0.687
Washer Outside Diameter1.25 in.
ColorBlack
Quantity1
Bolt Pattern5 X 4.75 in.
PositionN/A
Offset2.007 in.
Lug Nut Shank Diameter0.679 to 0.687 in.
Backspacing8.5 in.
Primary Wheel ColorPolished
Valve Stem IncludedYes
Back Spacing8.5 in (215.9 mm)
Primary Wheel FinishPolished
Load Rating1200 lbs.
Lug Nut Shank Length (In.)1.300-1.380
Wheel TypeCar Street, Strip Wheels
Part FitmentUniversal
Vendor Part Number90-512356
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
