Vehicle Info NeededWELD RACINGPART NUMBER: 927-90-59348

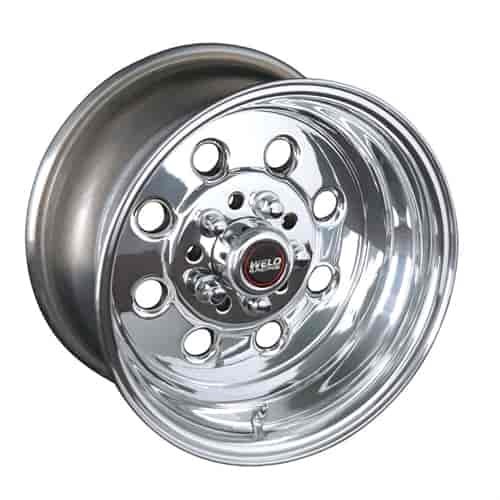

Draglite Wheel 15" x 9" 5 x 4.5/4.75 in. Bolt Pattern 4.5 in. Backspacing
$46500
Ships on 10/01/2026
Lowest Price Guarantee15'' x 9'' Wheels
Cast aluminum drag wheel with a dual five-lug bolt pattern.Size: 15" x 9" Bolt Pattern: 5 x 4.5/4.75 in. Backspacing: 4.5 in.
JEGS How to Measure Wheel Fitment - Click Here
This is the shallower of the two 15 by 9 in. Draglite offsets, with 4.5 in. of backspacing pushing the wheel slightly outboard. Dual drilling covers both Ford and GM five-lug circles.
Weld Racing 90-59348 Sizing and Fitment:
- Measures 15" x 9" with a 5 x 4.5/4.75 in. bolt pattern.
- 4.5 in. backspacing.
Design Notes:
- Dual drilled for two five-lug circles.
- Shallower backspacing than the 5.5 in. version.
- Part of the Street DFS Series.
- 15" Diameter wheels require 1.310"-1.375" long x .687" diameter mag shank lug nuts (sold separately)
- 17" Diameter wheels require 1.750" long x .745" diameter mag shank lug nuts (sold separately)
Weld Racing Sport Forged Draglite Polished Wheels are super strong and lightweight cold forged aluminum construction with blueprint-perfect runout tolerances. The best race and street performance wheel value in the industry. Sport Forged Draglite wheels feature a two piece construction and a brilliant polished finish making it the ultimate street/strip wheel on the market.
Show More
Features:
- Cold forged construction is up to 40% lighter and stronger than cast aluminum
- Mirror like polished finish only available from a WELD forged wheel
- High positive offsets with deeper backspaces
- Available from 3.5" to 16" wide.
- Real street/strip wheels - rated for use up to 8 second, 160 MPH drag cars
- Made in the U.S.A.
Weld Racing Sport Forged Draglite Wheels are also available in Black Finish
JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.
Part TypeWheel
Product LineWeld Racing Sport Forged Draglite Polished Wheels
BrandWELD RACING
Package Height11.3
Package Width17.8
Package Length17.9
Weight17.66 PG
Part CategoryPerformance Parts
Valve Stems IncludedYes
Wheel Size15 x 9 in.
Lug Nut Seat TypeShank
Hub CentricNo
Washer Outside Diameter1.25 in.
PositionN/A
Quantity1
Bolt Pattern5 X 4.75 in.
Load Rating (Lbs.)1,200
Back Spacing4.5 in.
Lug Nut Shank Diameter0.679 to 0.687 in.
Backspacing4.5 in.
Primary Wheel ColorPolished
Lug Nut Shank Length1.3 to 1.38 in.
Wheel FinishPolished
Valve Stem IncludedYes
Wheel Construction2-piece
Primary Wheel FinishPolished
Center Cap IncludedYes
Load Rating1200 lbs.
Lug Nut Shank Length (In.)1.300-1.380
Wheel Diameter15 in.
Wheel Bolt Pattern5 x 4.5/4.75 in.
Wheel TypeCar Street, Strip Wheels
Lug Nut Seat StyleShank
Part FitmentSemi Universal
Wheel Width9 In.
Lug Nut Shank Diameter (In.)0.679-0.687
Vendor Part Number90-59348
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
