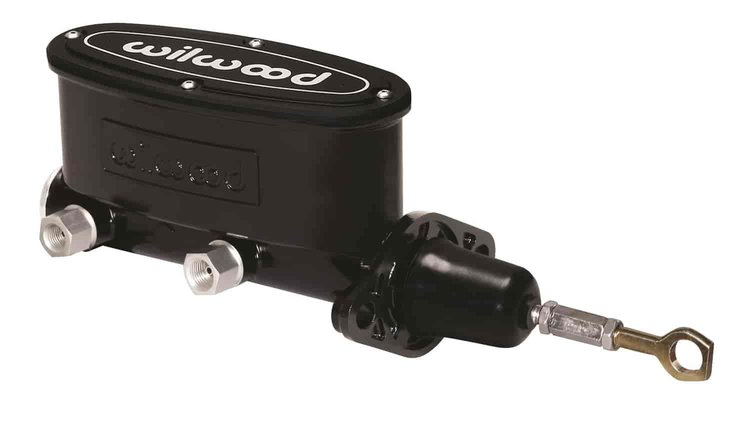

Aluminum Tandem Master Cylinder for 1964-1972 Ford Mustang, 7/8 in. Bore, Black E-Coat
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-260-12900-BK

Aluminum Tandem Master Cylinder for 1964-1972 Ford Mustang, 7/8 in. Bore, Black E-Coat

$33964
ShippingShips on Nov 24, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Brake Bleeder Kit with Magnet

JEGS

Brake Bleeder Kit with Magnet

Part Number : 555-W80625
$899$9.99
You Save$1.00
Brake Fluid Tester

JEGS

Brake Fluid Tester

Part Number : 555-80665
$2389$25.99
You Save$2.10
Brake Bleeder and Vacuum Pump Kit

JEGS

Brake Bleeder and Vacuum Pump Kit

Part Number : 555-80668
$3799$41.99
You Save$4.00
Brake Bleeder Kit

JEGS

Brake Bleeder Kit

Part Number : 555-W80626
$799$8.99
You Save$1.00

1964-73 Mustang Only, 7/8" Bore Master Cylinders
Tandem Master Cylinder
  • 1964-1972 Ford Mustang
  • Master Cylinder Bore Diameter: 7/8 in. (0.875 in.)
  • Master Cylinder Port Quantity: 2
  • Reservoir Type: Integral
  • Mount Hole Center To Center: 3.20-3.40 in.

    A 1964-1972 Ford Mustang's factory manual brake pedal gets the correct pushrod with this tandem aluminum master cylinder, dropping into the factory 3.22-3.40 in. mount flange without an adapter.

    Mustang Tandem Master Cylinder Features:

    • Designed primarily for manual brake applications.
    • Dual fluid outlet ports on both sides of the bore.
    • 1.10 in. stroke with a 2:1 volume ratio between the primary and secondary chambers.
    • High-pressure die-cast body weighs only 3 lb., 75% lighter than most cast iron OE master cylinders.
    • Pairs with Wilwood's 260-13190 combination proportioning valve kit for a complete brackets-and-lines setup.
    • Great Looking Master Cylinders

      Wilwood's aluminum tandem chamber master cylinders come in 4 different bore sizes, ranging from 0.875 to 1.875, and come in either a plain, ball burnished, or black e-coated finish. They are created to fit most stock mounts and come with outlet ports on each side for several choices.

    Part TypeMaster Cylinder
    Product LineWilwood Aluminum Tandem Chamber Master Cylinders
    BrandWILWOOD
    Package Height5.0
    Package Width5.5
    Package Length13.5
    Weight3.52 PG
    Part CategoryBrakes & Drivetrain
    Master Cylinder Stroke1.1 in (27.94 mm)
    Hardware IncludedNo
    Remote ReservoirNo
    Mounting Flange Center To Center Distance (In.)3.220-3.400
    Master Cylinder FinishBlack anodized
    Mounting Hole Quantity2 holes
    Brake Booster IncludedNo
    Master Cylinder Bore Size0.875 in (22.225 mm)
    QuantitySold individually
    Bowl DesignDual
    Mounting Brackets IncludedNo
    Master Cylinder MaterialAluminum
    Master Cylinder Cap IncludedYes
    Pushrod IncludedYes
    Reservoir MaterialAluminum
    Part FitmentDirect Fit
    Reservoir IncludedYes
    Vendor Part Number260-12900-BK
    Package Qty1
    Package TypeEA
