260-16769 Valves
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-260-16769

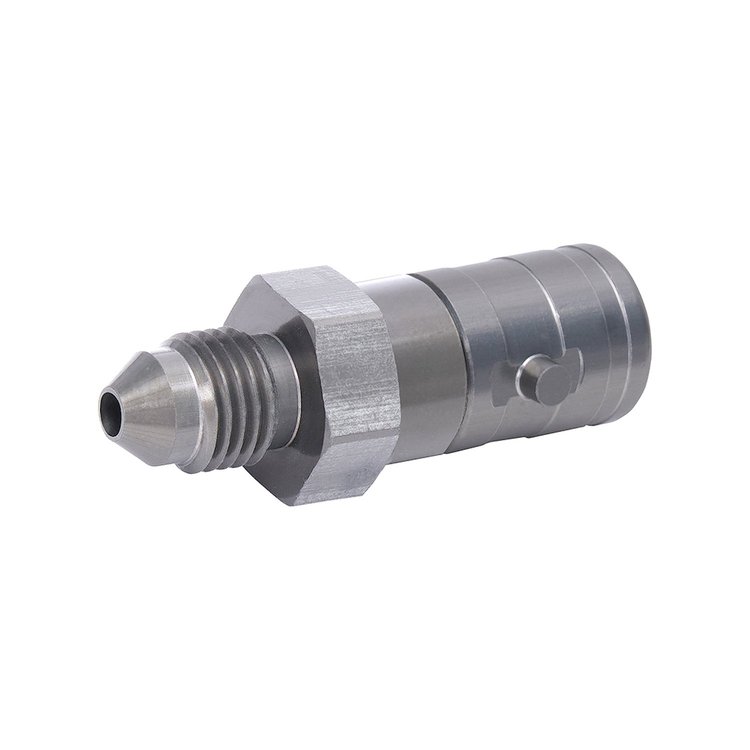

260-16769 Valves

$8675
3 left in stock
ShippingShips on Sep 08, 2026
Lowest PriceLowest Price Guarantee

    Valves
  • Quick Disconnect
  • Male Side
  • -3 An Male Inlet

    Wilwood 260-16769 Features:

    Wilwood dry break quick connect/disconnect -3 AN fittings make changing brake components faster with no need to bleed the system. A quick quarter-turn disconnects it, without tools, but they connect as secure as a threaded flexline fitting. The internal spring-loaded seal prevents air from entering or fluid from escaping. Wilwood dry break quick connect/disconnect fittings make changing brake components faster with no need to bleed the system. A quick quarter-turn disconnects it, without tools, but they connect as secure as a threaded flexline fitting. The internal spring-loaded seal prevents air from entering or fluid from escaping. Engineered explicitly for high-pressure hydraulic brake fluid systems. Configure hydraulic component spares with the appropriate adapter and pre-bleed for instant use, when needed. Race-proven in circle track, off-road, and endurance road racing. Lightweight (0.6 ounces) aluminum, precision engineered and hard anodized with -3 AN male fitting to male quick disconnect.

Part TypeBrake Master Cylinder
BrandWILWOOD
Package Height0.5
Package Width4.0
Package Length6.0
Weight0.06 PG
Weight0.060
Part CategoryPerformance Parts
Primary Outlet Thread Size-3 AN Male in.
Component TypeValves, Male
MaterialAluminum
Part FitmentSemi Universal
FinishType III Ano
Vendor Part Number260-16769
Package Qty1
Package TypeEA
