WILWOODPART NUMBER: 950-260-18184

260-18184 Master Cylinder

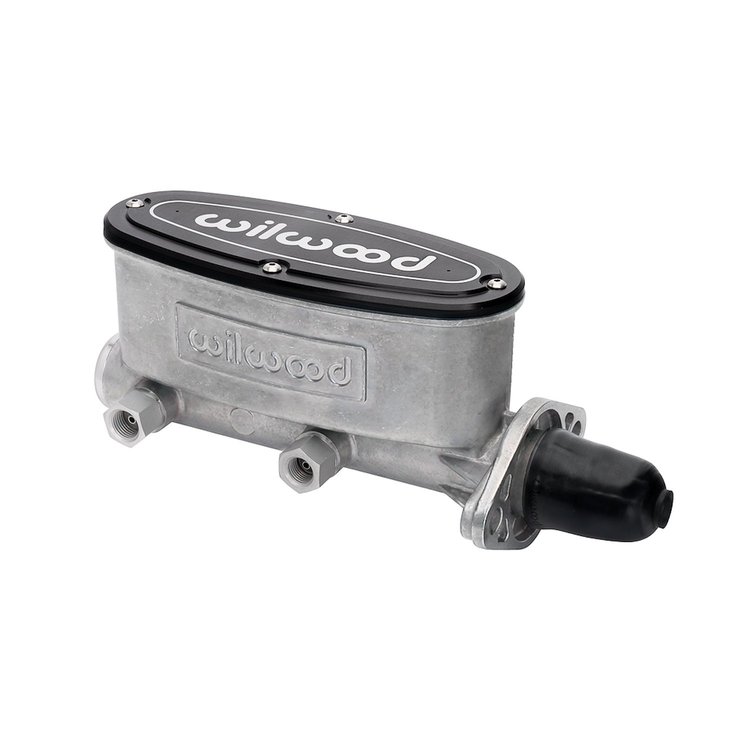

Name: 260-18184 Master Cylinder
Brand: WILWOOD
SKU: 950-260-18184
Price: 254.04 USD
Availability: InStock

^$254⁰⁴

Ships on 09/09/2026

Lowest Price Guarantee

M/C
Tandem
15/16
Die Cast
Dual Outlet W/O Pushrod

Wilwood 260-18184 Features:
Wilwood’s 15/16in bore Tandem Aluminum Master Cylinders available in 3 finishes, plain, Chrome Powder Coat, and black e-coat. These master cylinders can be used in manual and power assisted applications and does not come with a pushrod. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. This Master Cylinder is a plain finish.

Part TypeBrake Master Cylinder

BrandWILWOOD

Package Height5.13

Package Width5.44

Package Length13.5

Weight3.3 PG

Weight3.300

Part CategoryPerformance Parts

Primary Outlet Thread Size1/2-20

End 1 Fitting Type3/8-24 IF or 1/2-20 IF

End 2 Fitting Type3/8-24 IF or 9/16-18 IF

Overall Length8.76"

MaterialAluminum

Master Cylinder Port Quantity2

Reservoir TypeIntegral

Mount Hole Center To Center3.20-3.40"

Master Cylinder Bore Diameter15/16", 0.938

Secondary Outlet Thread Size1/2-20

Reservoir Capacity8.0 / 4.8, 14.4 / 8.7

Component TypeMaster Cylinder, Tandem Outlet

Recommended UseAluminum Tandem Master Cylinder, 15/16" bore.

Stroke Length1.10

Part FitmentDirect Fit

FinishBare

Mounting Flange To End Of Case8.15"

Vendor Part Number260-18184

Package Qty1

Package TypeEA
