Aluminum Tandem Master Cylinder Kit, 1 in. Bore [Ball Burnished, Polished) Finish]

Name: Aluminum Tandem Master Cylinder Kit, 1 in. Bore [Ball Burnished, Polished) Finish]
Brand: WILWOOD
SKU: 950-261-14963-P
Price: 494.05 USD
Availability: InStock

^$494⁰⁵

4 left in stock

Ships on Sep 14, 2026

Lowest Price Guarantee

1'' Master Cylinder Kits

Aluminum Tandem Master Cylinder Kit

Ball Burnished (Polished) Finish

1 in. Bore Size

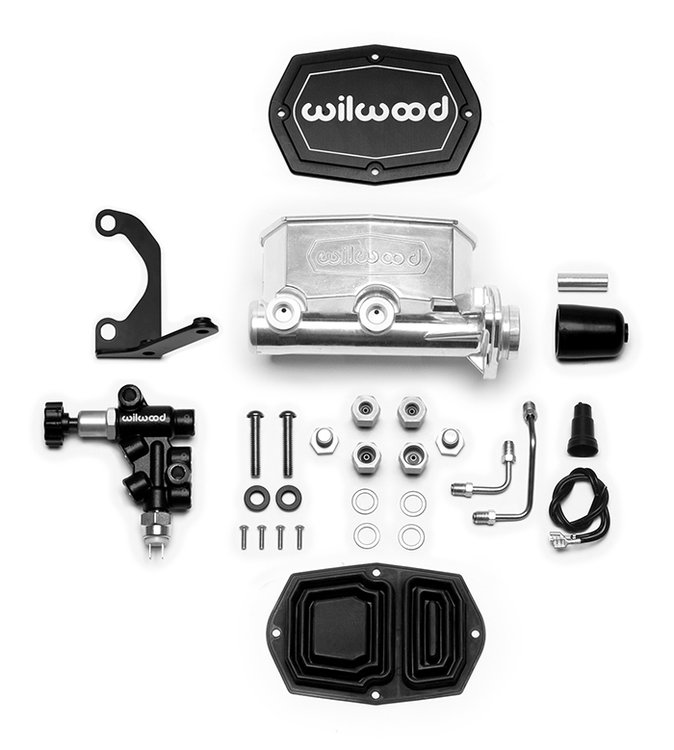

Includes:
Combination Proportioning Valve
Bracket
Fluid Tubes
Mounting Hardware
Master Cylinder with Pushrod

Master Cylinders for Any Brake System Setup
Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes, and mounting hardware in a kit. The Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt-on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in three bores sizes, 7/8", 1" or 1-1/8", and three finishes, standard, ball burnished or black E-coat.
Show More
The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Already have a Tandem Master Cylinder, but just looking for the Bracket Kit and Proportioning Valve Click here to get what you need! <b<>Features:
Available in three bores sizes, 7/8", 1" or 1-1/8"
Finishes included standard, ball burnished or black E-coat
Slotted flange mounting makes it a simple bolt on for many OE mounts

Part TypeMaster Cylinder
Product LineWilwood Tandem Master Cylinder Kits
BrandWILWOOD
Package Height5.62
Package Width12.38
Package Length12.38
Weight6.0 PG
Part CategoryPerformance Parts
Installation Hardware IncludedYes
QuantitySold as a kit
Number Of Outlets2
MaterialAluminum
Part FitmentSemi Universal
Reservoir IncludedYes
Bore Diameter1 in (25.4 mm)
FinishPolished
Vendor Part Number261-14963-P
Package Qty1
Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
