Vehicle Info NeededWILWOODPART NUMBER: 950-261-14964-BK

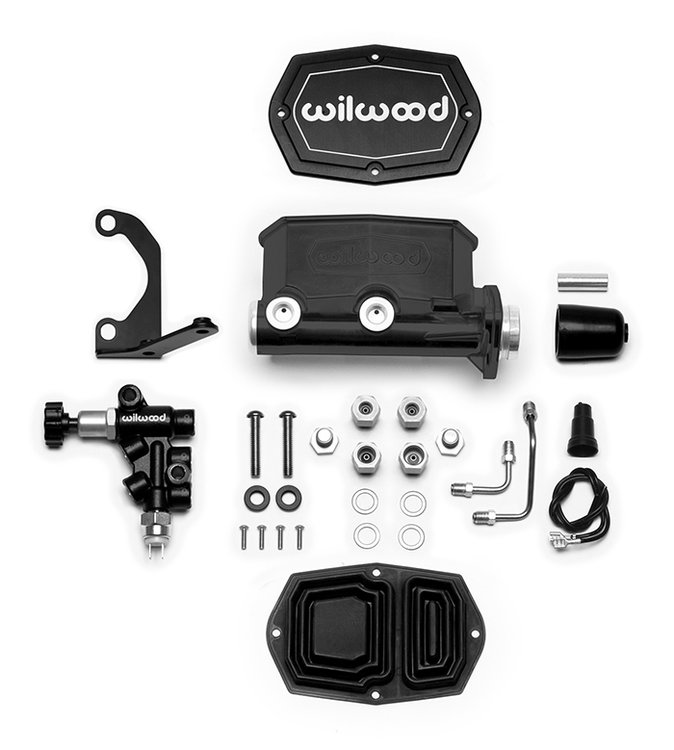

Compact Tandem Master Cylinder, 1 1/8 in. Bore - Black E-Coat Finish
$49405
1 left in stock
Ships Today
Lowest Price Guarantee1 1/8 in. Bore Master Cylinders
Compact Tandem Master CylinderTandem Chamber 1 1/8 in. Bore Combination Proportioning Valve Without Pushrod Aluminum Black E-Coat Finish Includes Left-Hand Mounting Bracket
Features:
- Simple bolt-on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns
- Compatible with manual or power brake system applications
- The combination block maintains full isolation between front and rear fluid circuits
- Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts
- Master Cylinder Stroke: 1.10 in.
- Reservoir Size (oz.): 7.8 / 4.7
- Reservoir Size (cu in.): 14.0 / 8.5
- Outlet Size 1 (in.): 1/2-20
- Outlet Fit 1 (in.): 3/8-24 IF or 1/2-20 IF
- Outlet Size 2 (in.): 1/2-20
- Outlet Fit 2 (in.): 3/8-24 IF or 9/16-18 IF
Compact, Lightweight Design
Wilwood Compact Tandem Master Cylinders have a 6.550 in. overall length making them the shortest integral reservoir master cylinders on the market. These lightweight aluminum Master Cylinders are available with an integral pushrod for manual pedals in bore sizes ranging from 7/8 in., 15/16 in., 1 in., and 1 1/8 in.; while the 1 in. and 1 1/8 in. models are also available for use with power boosters. Wilwood Tandem-Chamber Master Cylinders come in your choice of a glossy black E-coat or bright media burnished finish.
Part TypeMaster Cylinder
Product LineWilwood Compact Tandem Master Cylinders w/Reservoir
BrandWILWOOD
Package Height9.2
Package Width13.2
Package Length13.6
Weight5.91 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number261-14964-BK
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
