WILWOODPART NUMBER: 950-261-15493-BK

261-15493-BK Master Cylinder Kit

Name: 261-15493-BK Master Cylinder Kit
Brand: WILWOOD
SKU: 950-261-15493-BK
Price: 493.96 USD
Availability: InStock

^$493⁹⁶

Ships on 09/08/2026

Lowest Price Guarantee

Kit
M/C
Remote Tandem
15/16
Mustang W/P-Valve
Black

Wilwood 261-15493-BK Features:

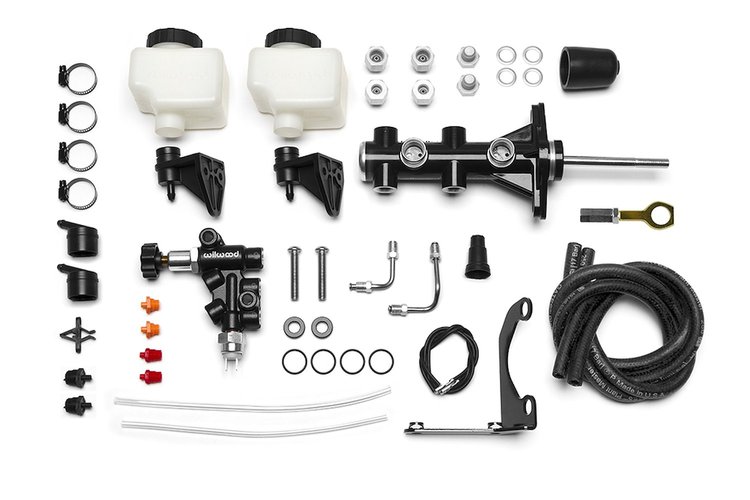

Wilwood’s new 15/16” Remote Tandem Master Cylinder for Classic Mustang is designed for Manual Brakes instalation with the appropriate eyelet. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. Packaged with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. This master cylinder features a Ball Burnished finish.

Part TypeBrake Master Cylinder

BrandWILWOOD

Package Height5.62

Package Width12.38

Package Length12.38

Weight5.7 PG

Weight5.700

Part CategoryPerformance Parts

Primary Outlet Thread Size1/2-20

End 1 Fitting Type3/8-24 IF or 1/2-20 IF

End 2 Fitting Type3/8-24 IF or 9/16-18 IF

Overall Length10.76"

MaterialAluminum / Plastic

Master Cylinder Port Quantity2

Push Rod Length4.23" x 3/8-24

Reservoir TypeRemote

Mount Hole Center To Center3.20-3.40"

Master Cylinder Bore Diameter15/16", 0.938

Secondary Outlet Thread Size1/2-20

Reservoir Capacity7.0 / 7.0, 12.6 / 12.6

Inlet Thread Size.87" or 11/16-20

Component TypeMaster Cylinder Kit, Tandem Outlet

Inlet Filter Fitting Type1/4" Hose

Recommended UseRemote Tandem Master Cylinder Kit for Classic Mustang, 15/16" bore, Black

Stroke Length1.12

Part FitmentSemi Universal

FinishBlack E-coat

Mounting Flange To End Of Case6.56"

Vendor Part Number261-15493-BK

Package Qty1

Package TypeEA
