261-15522-BK Master Cylinder Kit

Name: 261-15522-BK Master Cylinder Kit
Brand: WILWOOD
SKU: 950-261-15522-BK
Price: 517.32 USD
Availability: InStock

^$517³²

Ships on 09/08/2026

Lowest Price Guarantee

Kit
M/C
Tandem
Compact
Integral
7/8 Dia W/P-Valve/Pushrod
Mustang
Black

Wilwood 261-15522-BK Features:

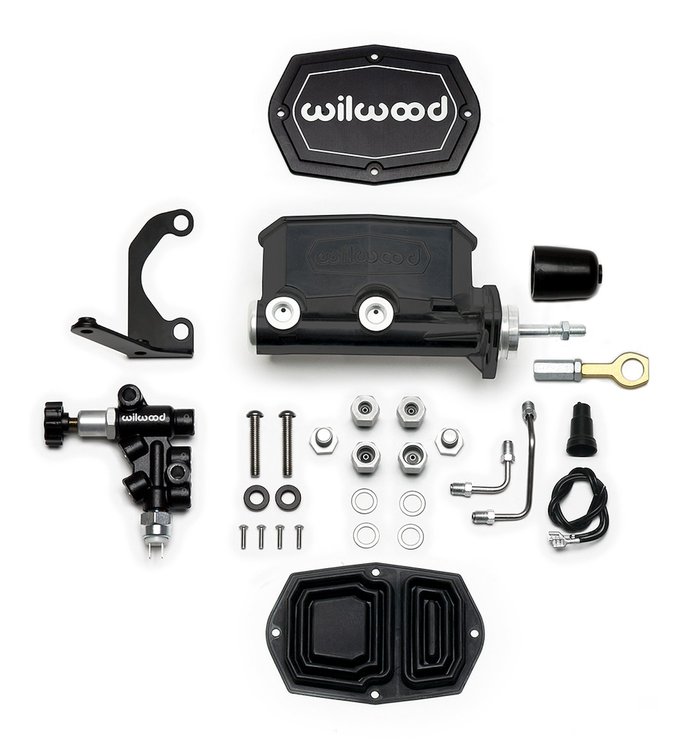

Wilwood's new Compact Tandem Master Cylinder kit part no. 261-15522-BK has a 7/8in bore and Black E-coat finish, a left-hand side bracket, proportioning valve, tubing and pushrod with a Ford/Mustang clevis end.

Part TypeBrake Master Cylinder

BrandWILWOOD

Package Height5.62

Package Width12.38

Package Length12.38

Weight6.1 PG

Weight6.100

Part CategoryPerformance Parts

Primary Outlet Thread Size1/2-20

End 1 Fitting Type3/8-24 IF or 1/2-20 IF

End 2 Fitting Type3/8-24 IF or 9/16-18 IF

Overall Length12.32"

MaterialAluminum

Master Cylinder Port Quantity2

Push Rod Length5.75"

Reservoir TypeIntegral

Mount Hole Center To Center3.20-3.40"

Master Cylinder Bore Diameter7/8", 0.875

Secondary Outlet Thread Size1/2-20

Reservoir Capacity7.8 / 4.7, 14.0 / 8.5

Component TypeMaster Cylinder Kit, Tandem Outlet

Recommended UseCompact Tandem Master Cylinder, 7/8" bore, Mustang Manual, Black, L/H bracket and Prop Valve.

Stroke Length1.10

Part FitmentSemi Universal

FinishBlack E-coat

Mounting Flange To End Of Case6.55"

Vendor Part Number261-15522-BK

Package Qty1

Package TypeEA
