WILWOODPART NUMBER: 950-261-16838-75

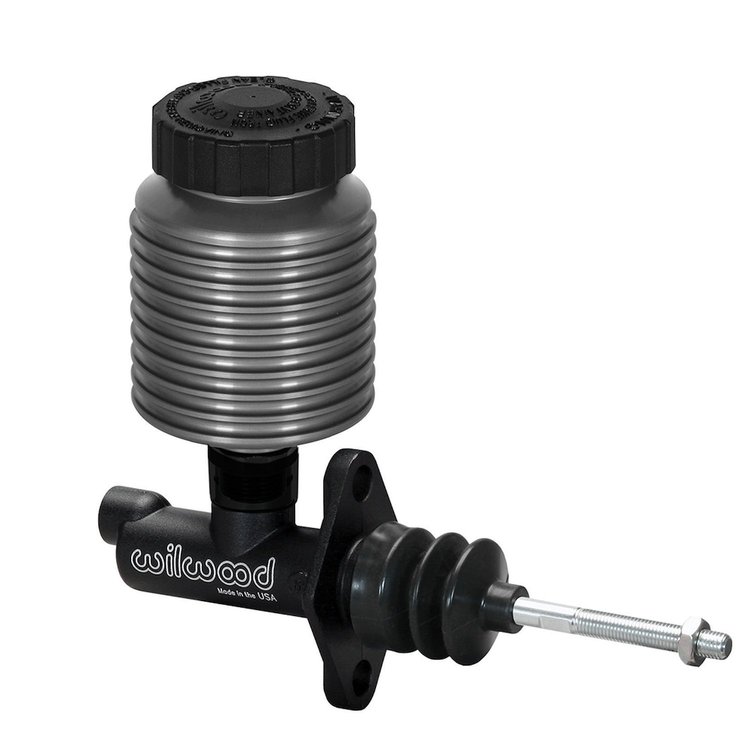

261-16838-.75 Master Cylinder

Name: 261-16838-.75 Master Cylinder
Brand: WILWOOD
SKU: 950-261-16838-75
Price: 160.40 USD
Availability: InStock

^$160⁴⁰

Ships on 09/08/2026

Lowest Price Guarantee

M/C
Compact Remote
.75
Body
W/Kit Reservoir

Wilwood 261-16838-.75 Features:
Wilwood’s Compact Combination Master Cylinder Kits have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37 in.compact body provides a full 1.12 in. of piston stroke that meets or exceeds the stroke capacity of most full size cylinders. This Master Cylinder is a 3/4in bore.

Part TypeBrake Master Cylinder

BrandWILWOOD

Package Height3.38

Package Width5.94

Package Length8.25

Weight1.39 PG

Weight1.390

Part CategoryPerformance Parts

Primary Outlet Thread Size1/8-27 NPT in.

Overall Length7.80" in.

MaterialAluminum / Plastic

Master Cylinder Port Quantity1

Push Rod Length4.00" x 5/16-24 in.

Reservoir TypeRemote

Mount Hole Center To Center2.25" in.

Master Cylinder Bore Diameter3/4" in., 0.750 in.

Reservoir Capacity4.00, 7.22

Inlet Thread Size.87" or 11/16-20 in.

Component TypeMaster Cylinder, Single Outlet

Volume0.49

Stroke Length1.12 in.

Part FitmentSemi Universal

FinishBlack E-coat

Mounting Flange To End Of Case3.37"

Vendor Part Number261-16838-.75

Package Qty1

Package TypeEA
