WILWOODPART NUMBER: 950-261-16839-88

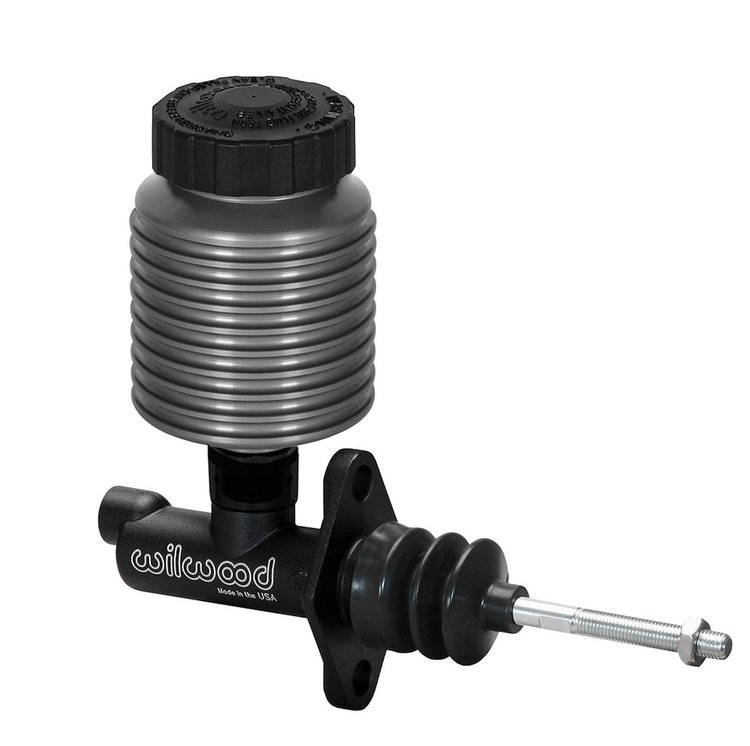

261-16839-.88 Master Cylinder

Name: 261-16839-.88 Master Cylinder
Brand: WILWOOD
SKU: 950-261-16839-88
Price: 160.40 USD
Availability: InStock

^$160⁴⁰

Ships on 09/08/2026

Lowest Price Guarantee

Kit
M/C
Compact Remote
.88
Body
W/Kit Reservoir

Wilwood 261-16839-.88 Features:
Wilwood’s Compact Combination Master Cylinder Kits have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides a full 1.12” of piston stroke that meets or exceeds the stroke capacity of most full size cylinders. This Master Cylinder is a 7/8in bore.

Part TypeBrake Master Cylinder

BrandWILWOOD

Package Height3.38

Package Width5.94

Package Length8.25

Weight1.52 PG

Weight1.520

Part CategoryPerformance Parts

Primary Outlet Thread Size1/8-27 NPT

Overall Length7.80"

MaterialAluminum / Plastic

Master Cylinder Port Quantity1

Push Rod Length4.00" x 5/16-24

Reservoir TypeRemote

Mount Hole Center To Center2.25"

Master Cylinder Bore Diameter7/8", 0.875

Reservoir Capacity4.00, 7.22

Inlet Thread Size.87" or 11/16-20

Component TypeMaster Cylinder, Single Outlet

Volume0.67

Recommended UseCompact Remote Master Cylinder w/ Aluminum Reservior Kit, 7/8" Bore.

Stroke Length1.12

Part FitmentSemi Universal

FinishBlack E-coat

Mounting Flange To End Of Case3.37"

Vendor Part Number261-16839-.88

Package Qty1

Package TypeEA
