Made in USA

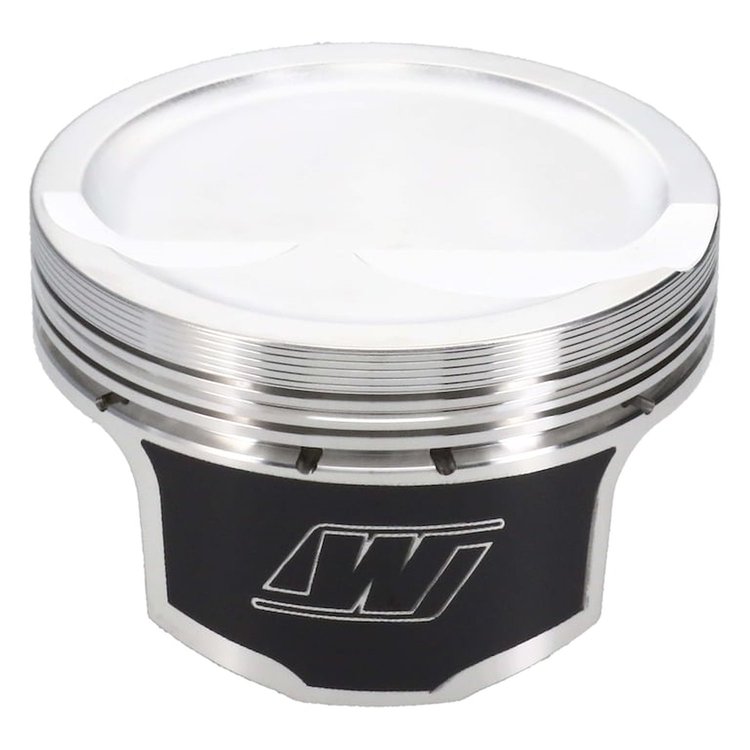

RED0081X185 RED-Series Piston Set, Chevy LS, 4.185 in. Bore, -15 cc Dish
InfoVehicle Info Needed
WISECOPART NUMBER: 926-J000008

RED0081X185 RED-Series Piston Set, Chevy LS, 4.185 in. Bore, -15 cc Dish

$94999
ShippingShips on 11/13/2026
Lowest PriceLowest Price Guarantee

Items You Need

Deluxe Piston Ring Expander Tool Universal

TOTAL SEAL

Deluxe Piston Ring Expander Tool Universal

Part Number : 901-HAS1723
$2183
Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

PROFORM

Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

Part Number : 778-67652K3
$9548
Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

JEGS

Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

Part Number : 555-W80574
$1599$17.99
You Save$2.00
32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

JEGS

32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

Part Number : 555-80500
$999$10.99
You Save$1.00

Chevy LS
RED-Series Piston Set
  • Chevy LS
  • 4.185 in. Bore
  • 1.294 in. Compression Height
  • 0.927 in. Pin Diameter
  • -15 cc Dish
  • Set of 8

    Wiseco RED0081X185 Features:

    Appropriately dubbed the RED-series, these forged pistons utilize a Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED-series piston kits are ideal for popular domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

    • Bore Diameter: 4.185 in.
    • Compression Height: 1.294 in.
    • Oil Ring Tension: Standard
    • Oil Ring Thickness: 3.00 MM
    • Piston Material: 2618
    • Piston Quantity: 8
    • Ring Quantity: 8
    • Rod Length: 6.125 in.
    • Second Compression Ring Thickness: 1.20 MM
    • Top Compression Ring Thickness: 1.20 MM
    • Top Ring Material: Steel

      • Unleash Power with High-Performance Pistons

      Precision-engineered from 2618 aluminum, these forged Wiseco RED Series Pistons deliver unmatched strength for V8 engines. Featuring ArmorGlide coating and optimized design, they ensure durability and competitive advantage. Order for your specific application and experience the ultimate performance-value balance.

    Part TypePiston
    Product LineWiseco RED Series Piston Sets
    BrandWISECO
    Package Height6.0
    Package Width12.0
    Package Length26.0
    Weight14.0 PG
    Part CategoryPerformance Parts
    Compression Height1.294 in.
    Second Compression Ring Thickness1.20 MM
    Top Compression Ring Thickness1.20 MM
    Top Ring MaterialSteel
    Piston Material2618
    Oil Ring Thickness3.00 MM
    Part FitmentSemi Universal
    Bore Diameter4.185 in.
    Rod Length6.125 in.
    Ring Quantity8
    Oil Ring TensionStandard
    Piston Quantity8
    Vendor Part NumberRED0081X185
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
