Made in USA

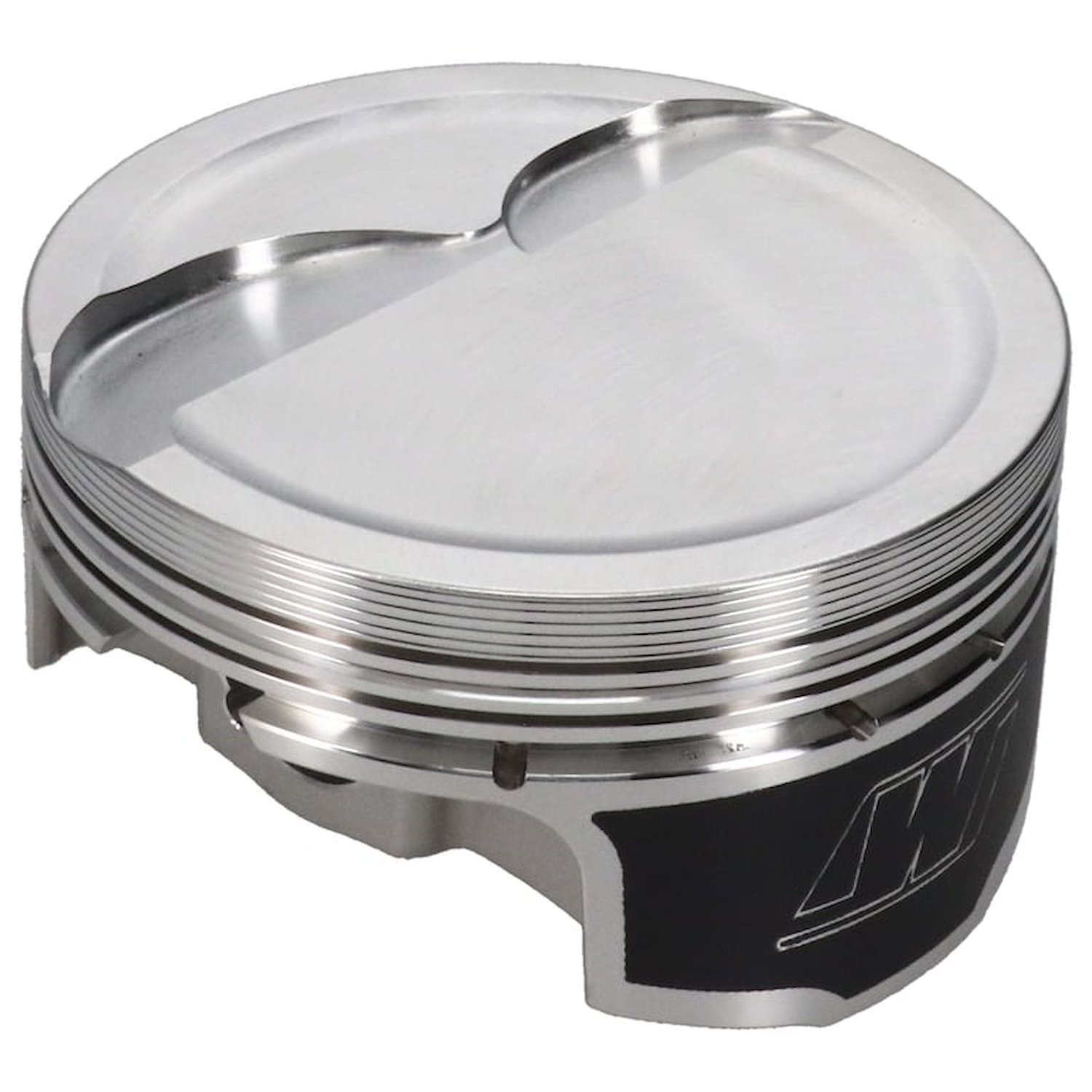

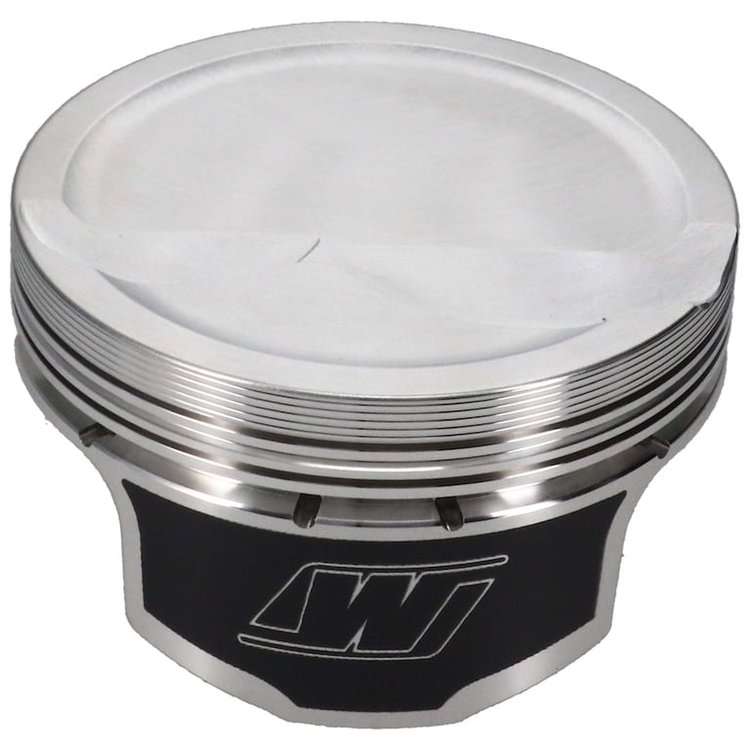

RED0083X130 RED-Series Piston Set, Chevy LS, 4.130 in. Bore, -10 cc Dish
InfoVehicle Info Needed
WISECOPART NUMBER: 926-J000010

RED0083X130 RED-Series Piston Set, Chevy LS, 4.130 in. Bore, -10 cc Dish

$94999
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Deluxe Piston Ring Expander Tool Universal

TOTAL SEAL

Deluxe Piston Ring Expander Tool Universal

Part Number : 901-HAS1723
$2183
Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

PROFORM

Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

Part Number : 778-67652K3
$9548
Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

JEGS

Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

Part Number : 555-W80574
$1599$17.99
You Save$2.00
32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

JEGS

32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

Part Number : 555-80500
$999$10.99
You Save$1.00

Chevy LS
RED-Series Piston Set
  • Chevy LS
  • 4.130 in. Bore
  • 1.105 in. Compression Height
  • 0.927 in. Pin Diameter
  • -10 cc Dish
  • Set of 8

    Wiseco RED0083X130 Features:

    Appropriately dubbed the RED-series, these forged pistons utilize a Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED-series piston kits are ideal for popular domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

    • Bore Diameter: 4.130 in.
    • Compression Height: 1.105 in.
    • Oil Ring Tension: Standard
    • Oil Ring Thickness: 3.00 MM
    • Piston Material: 2618
    • Piston Quantity: 8
    • Ring Quantity: 8
    • Rod Length: 6.125 in.
    • Second Compression Ring Thickness: 1.20 MM
    • Top Compression Ring Thickness: 1.20 MM
    • Top Ring Material: Steel
    • Part TypePiston
    BrandWISECO
    Package Height6.0
    Package Width12.0
    Package Length26.0
    Weight14.0 PG
    Part CategoryPerformance Parts
    Compression Height1.105 in.
    Second Compression Ring Thickness1.20 MM
    Top Compression Ring Thickness1.20 MM
    Top Ring MaterialSteel
    Piston Material2618
    Oil Ring Thickness3.00 MM
    Part FitmentSemi Universal
    Bore Diameter4.130 in.
    Rod Length6.125 in.
    Ring Quantity8
    Oil Ring TensionStandard
    Piston Quantity8
    Vendor Part NumberRED0083X130
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
