K0036X2 Professional Series Forged Pistons for Mopar 5.7L Gen III Hemi Engines
InfoVehicle Info Needed
WISECOPART NUMBER: 926-K0036X2

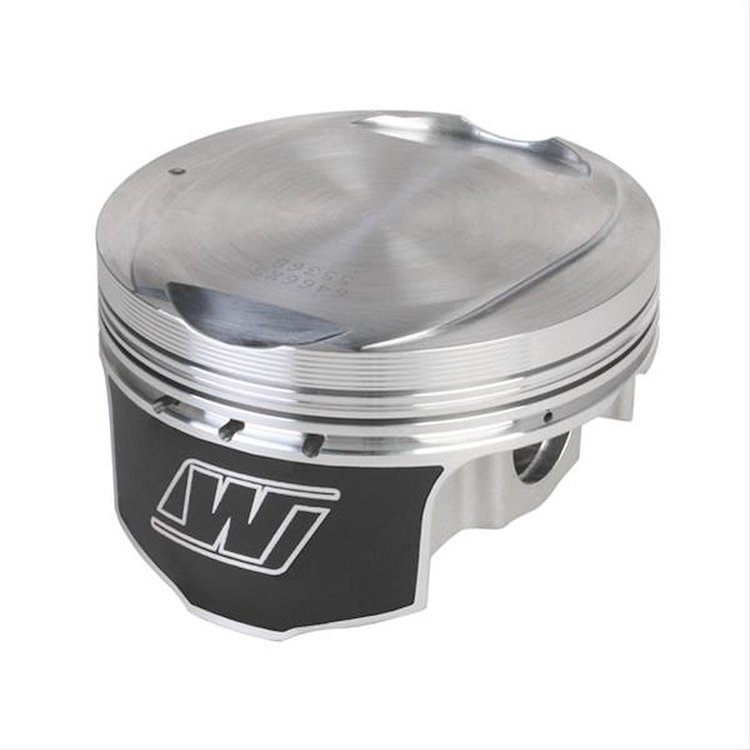

K0036X2 Professional Series Forged Pistons for Mopar 5.7L Gen III Hemi Engines

$1,01999
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Deluxe Piston Ring Expander Tool Universal

TOTAL SEAL

Deluxe Piston Ring Expander Tool Universal

Part Number : 901-HAS1723
$2183
Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

PROFORM

Piston Installation Kit Includes: Universal Ring Squaring Tool, Ring Compressor, & Heavy Duty Piston Install Tool

Part Number : 778-67652K3
$9548
Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

JEGS

Wrinkle Band Ring Compressor Adjustable for 3" -5" Bore Sizes

Part Number : 555-W80574
$1599$17.99
You Save$2.00
32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

JEGS

32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

Part Number : 555-80500
$999$10.99
You Save$1.00

Mopar
Professional Series Forged Pistons
  • Mopar 5.7L Gen III Hemi Engines
  • Bore: 4.320 in.
  • Stroke: 3.937 in.
  • Rod Length: 6.243 in.
  • Compression Height: 1.205 in.
  • Piston Head Volume: -10 cc
  • Set of 8

    Wiseco K0036X2 Professional Series Forged Pistons:

    • Forged from 2618 aluminum for improved tensile strength
    • ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
    • Fully machined crown features
    • Precision ring grooves, anti-detonation grooves, and additional ring seal improving features
    • Forced pin oiling
    • Withstand heavy to severe duty performance applications

    Wiseco K0036X2 Professional Series Forged Pistons Specs:

    • Bore: 3.937 in.
    • Stroke: 3.580 in.
    • Rod Length: 6.243 in.
    • Piston Material: Forged Aluminum
    • Compression Height: 1.205 in.
    • Piston Head Volume: -10 cc
    • Wrist Pin Style: Floating
    • Wrist Pin Retainers Included: Yes
    • Wrist Pin Included: Yes
    • Pin Diameter: .927 in.
    • Piston Ring Thickness: 1.0 mm, 1.2 mm, 2.8 mm
    • Set of 8
    • Part TypePiston
    BrandWISECO
    Package Height7.0
    Package Width13.1
    Package Length13.9
    Weight12.81 PG
    Part CategoryPerformance Parts
    Compression Height1.205 in (30.607 mm)
    Piston Ring Thickness (In.)1.00mm x 1.20mm x 2.80mm
    Wrist Pin StyleFloating
    Piston MaterialForged
    Part FitmentSemi Universal
    Bore Diameter3.937 in.
    Rod Length6.243 in.
    Wrist Pin IncludedYes
    ToolStroker Combinations
    Vendor Part NumberK0036X2
    Package Qty1
    Package TypeEA
