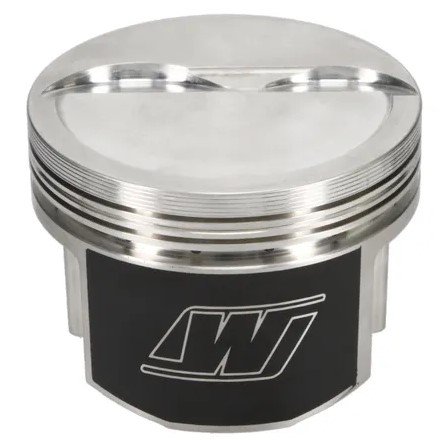

Chrysler 440 ci. Big Block Reverse Dome Piston Set 4.360 in. Bore, 4.150 in. Stroke

Name: Chrysler 440 ci. Big Block Reverse Dome Piston Set 4.360 in. Bore, 4.150 in. Stroke
Brand: WISECO
SKU: 926-K0126A110
Price: 1106.99 USD
Availability: InStock

^$1,106⁹⁹

Ships on 09/16/2026

Lowest Price Guarantee

Chrysler Big Block

Chrysler 440 ci. Big Block Reverse Dome Piston Set

Bore: 4.360 in. (+.040 in.)

Head Type: Inverted Dome w/2 Valve Reliefs (-15 cc)

Comp. Height: 1.865 in.

Ring Grooves: 1/16, 1/16, 3/16 in.

Set of 8

Wiseco K0126A110 Chrysler 440 ci. Big Block Reverse Dome Piston Set

Bore Diameter: 4.360 in.
Compression Height: 1.865 in.
Forging Type: Slab Side
Oil Ring Thickness: 3/16 in.
Piston Material: 2618
Piston Pin Included: Yes
Piston Pin Material: 5115
Piston Volume: -15 cc
Product Series: Professional
Product Types: Piston Kits
Ringset Included: No
Second Compression Ring Thickness: 1/16 in.
Skirt Coating: Y
Top Compression Ring Thickness: 1/16 in.
Wrist Pin Diameter: 0.990 in.
Wrist Pin Style: Floating

Championship winning performance built with input from today's top engine builders. Wiseco Professional Series Pistons will get you there first.

Wiseco Domestic Automotive Forged Pistons feature dedicated forgings, specially designed valve pockets, unique dome and crown designs, optimized skirt profiles and precision machined ring grooves. Other features such as dome brushing, ArmorGlide skirt coatings, gas ports, and advanced ring packages will be found on many of these pistons. Additionally, valve pocket designs that allow maximum flow around valve, also allowing oversized valves and high lift cams to be utilized, piston crown shapes designed to promote maximum intake charge, efficiency through scavenging mixture "Cross Flow" during intake and exhaust valve overlap.

More fuel and air equals more horsepower! Piston domes are designed for optimal quench during the compression/combustion cycle, resulting in resistance to detonation and preignition. The end result is longer engine life and increased horsepower potential. Precision machined ring grooves with proper orifice/accumulator volume feature calculated groove root diameters and axial widths, providing excellent surface finish and flatness, maximum ring seal and minimized blow-by and oil consumption. World class, ISO certified forging facility that utilizes the latest technologies featuring complex forged shapes, advanced materials, and feature aligned grain flow technology. Complex Piston skirt profiles that reduce power robbing friction, yet promote stability in the bore for optimum ring seal.

Features:

4032 or 2618 extruded material forged for maximum strength.
Precision tolerance CNC machining for quality, repeatability and performance.
Crown thickness and ring lands designed for power-adders, such as: Force induction (turbos & blowers), and nitrous oxide.
Wrist Pins constructed of chrome moly steel material for the ultimate in strength.
Precision pin bore finish for a high tolerance fit between piston pin and piston.
Spirolox® featuring chrome silicon material for the ultimate yield strength.
All pistons are deburred for trouble free installation.

Part TypePiston

Product LineWiseco Domestic Automotive Forged Pistons

BrandWISECO

Package Height6.0

Package Width11.0

Package Length26.0

Weight17.495 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberK0126A110

Package Qty1

Package TypeEA
