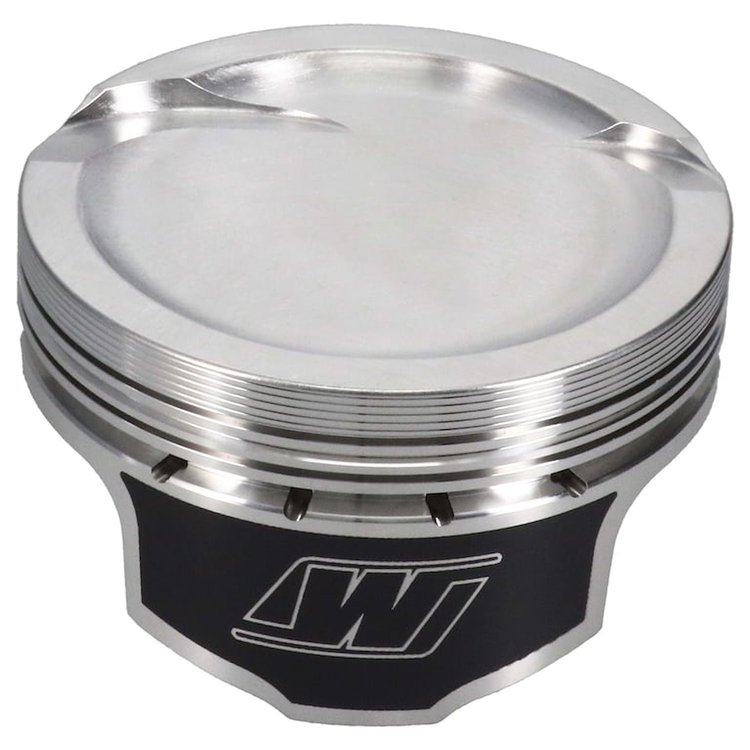

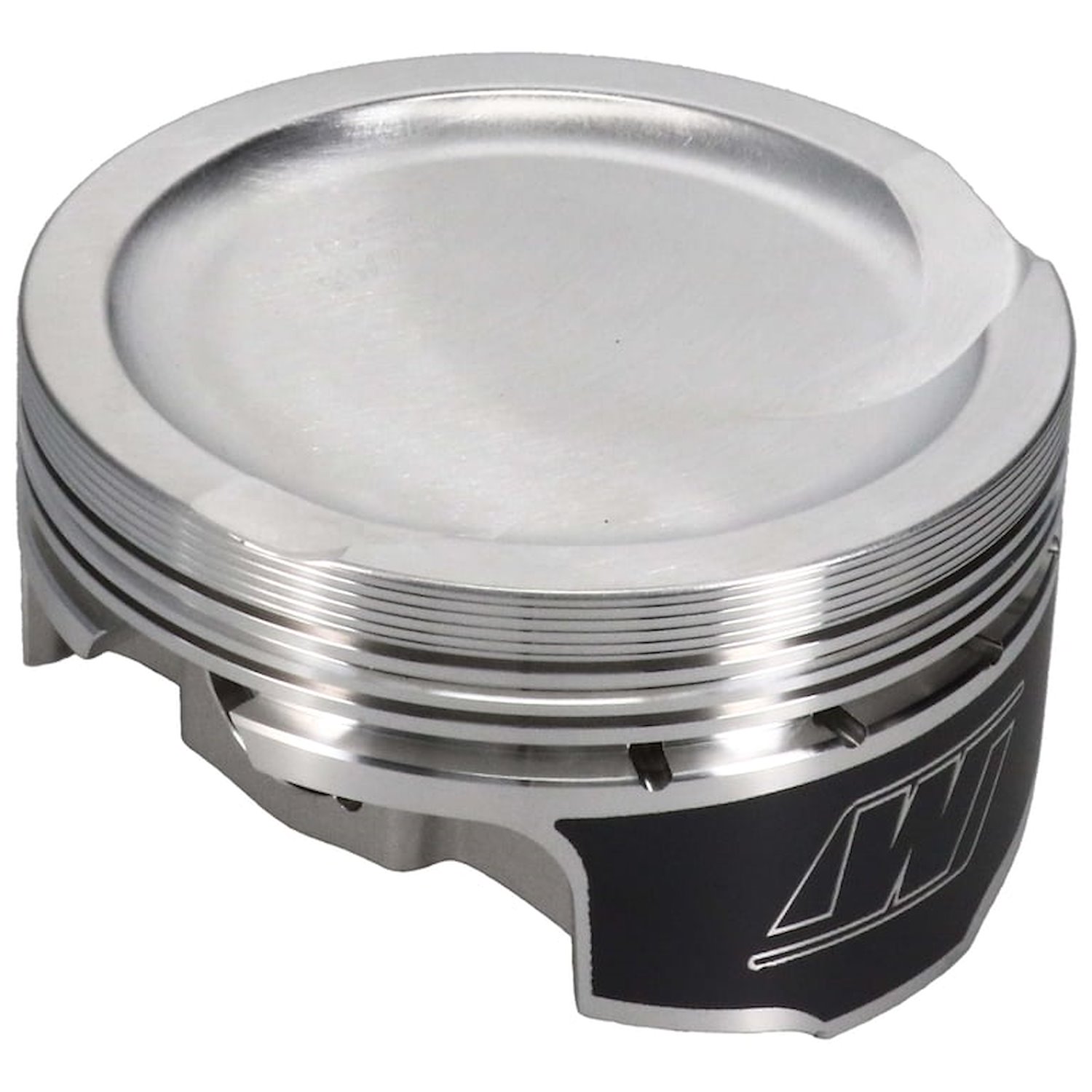

RED0084X8 RED-Series Piston Set, Chevy LS, 4.080 in. Bore, -20 cc Dish
InfoVehicle Info Needed
WISECOPART NUMBER: 926-RED0084X8

RED0084X8 RED-Series Piston Set, Chevy LS, 4.080 in. Bore, -20 cc Dish

$94999
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Chevy LS
RED-Series Piston Set
  • Chevy LS
  • 4.080 in. Bore
  • 1.105 in. Compression Height
  • 0.927 in. Pin Diameter
  • -20 cc Dish
  • Set of 8

    Wiseco RED0084X8 Features:

    Appropriately dubbed the RED-series, these forged pistons utilize a Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED-series piston kits are ideal for popular domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

    • Bore Diameter: 4.080 in.
    • Compression Height: 1.105 in.
    • Oil Ring Tension: Standard
    • Oil Ring Thickness: 3.00 MM
    • Piston Material: 2618
    • Piston Quantity: 8
    • Ring Quantity: 8
    • Rod Length: 6.125 in.
    • Second Compression Ring Thickness: 1.20 MM
    • Top Compression Ring Thickness: 1.20 MM
    • Top Ring Material: Steel

      • Unleash Power with High-Performance Pistons

      Precision-engineered from 2618 aluminum, these forged Wiseco RED Series Pistons deliver unmatched strength for V8 engines. Featuring ArmorGlide coating and optimized design, they ensure durability and competitive advantage. Order for your specific application and experience the ultimate performance-value balance.

    Part TypePiston
    Product LineWiseco RED Series Piston Sets
    BrandWISECO
    Package Height6.0
    Package Width12.0
    Package Length26.0
    Weight14.0 PG
    Part CategoryPerformance Parts
    Compression Height1.105 in.
    Second Compression Ring Thickness1.20 MM
    Top Compression Ring Thickness1.20 MM
    Top Ring MaterialSteel
    Piston Material2618
    Oil Ring Thickness3.00 MM
    Part FitmentSemi Universal
    Bore Diameter4.080 in.
    Rod Length6.125 in.
    Ring Quantity8
    Oil Ring TensionStandard
    Piston Quantity8
    Vendor Part NumberRED0084X8
    Package Qty1
    Package TypeEA
