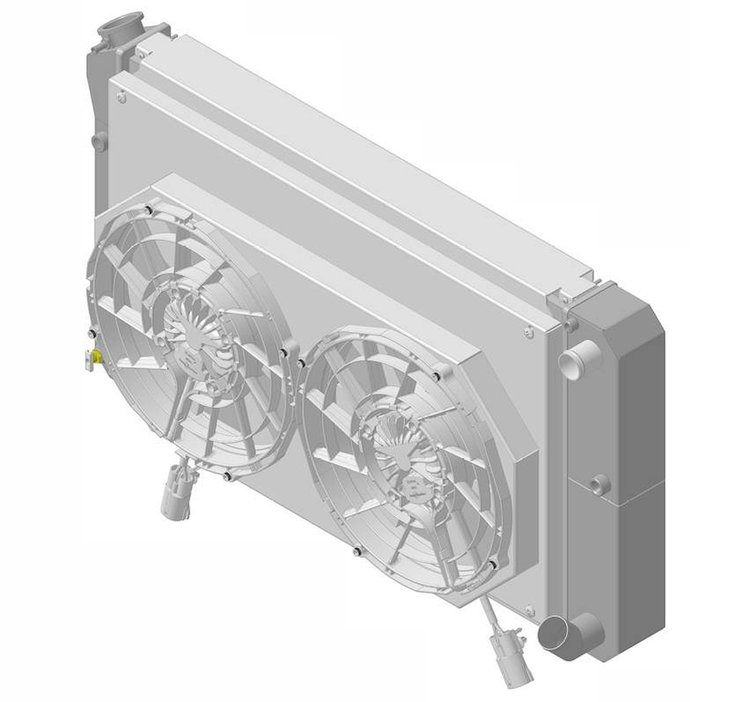

Wizard Cooling 1-366-212LSBL Features:

A true high performance radiator built right here in the USA! This radiator is built with 2 rows of 1.25 in. tubes, making it the same thickess as a 5 row copper/brass radiator but will perform like a 6 row. Since this unit is built for application with a automatic transmission, there is a high performance transmission cooler in this radiator. The core is fully brazed and contain NO Epoxy. Super high efficiency fin design with a louver count on each fin exceeding other cores in the market. The fans are the best in industies. The benefits of this SPAL 300 watt brushless fans are- they extremely powerful, move tons of air, high torque, quieter than brush fans, and are variable speed.

• Engine Compatibility:
  • LS Swap
  • LS Swap (Supercharged)
• Shroud: Yes
• Shroud Type: Shroud
• Electric Fans: Yes
• Electric Fan Type: Brushless
• Number of Electric Fans: 2
• Fan Diameter: 12 in
• Total Fan Airflow: 3600 CFM (all fans)
• Critical Thickness Options:
  • 6.50 in
  • 7.50 in
• Core Thickness: 2.75 in (Upgraded High Performance Core)
• Thickness of Core: 2.75 in (Upgraded High Performance Core)
• Core Row Quantity: 2
• Cubic Inches of Core: 1437 cu in
• Core Width: 28.25 in
• Core Height: 18.50 in
• Core Material: Aluminum
• Tank Material: Aluminum
• Finish: Aluminum
• Flow Type: Cross Flow
• Mounting Type: Saddle
• Inlet Location: Passenger Side
• Inlet Diameter: 1.375 in
• Inlet Header Width: 3 in
• Inlet Header Length: 18.50 in
• Outlet Location: Passenger Side
• Outlet Diameter: 1.625 in
• Outlet Header Width: 3 in
• Outlet Header Length: 18.50 in
• Tube Inside Diameter: 1.25 in
• Transmission Oil Cooler Included: Yes
• Transmission Oil Cooler Type: Plate
• Transmission Oil Cooler Plate Quantity: 5
• Transmission Oil Cooler Fitting Diameter: 1/4 NPT
• Engine Oil Cooler Included: No
• Mounted A/C Condenser: No
• Expansion Tank Included: No
