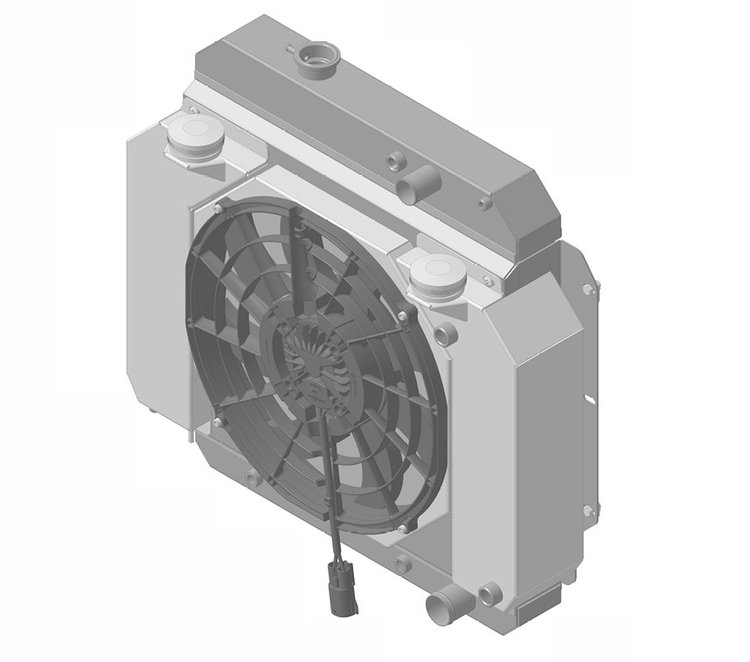

Wizard Cooling 1-99002-218LSBLXXACIN500 Features:

, Engine: LS Swap (Supercharged) , Electric Fan: Yes , Number of Electric Fans: 1 , Fan Type: Brushless , Fan Diameter: 16 in , Total CFM (All Fans): 3200 , Critical Thickness: 6.50 in , Critical Thickness (Alternate): 7.50 in , Fan Shroud & Radiator Thickness: 6.50 in , Core Thickness: 2.75 in (Upgraded High Performance Core) , Core Width: 21.50 in , Core Height: 20 in , Core Row Quantity: 2 , Cubic Inches of Core: 1183 CuIn , Core Material: Aluminum , Tank Material: Aluminum , Finish: Aluminum , Flow Type: Down Flow , Tube Inside Diameter: 1.25 in , Inlet Location: Passenger Side , Outlet Location: Passenger Side , Inlet Diameter: 1.375 in , Outlet Diameter: 1.625 in , Inlet Header Width: 3 in , Inlet Header Length: 21.50 in , Outlet Header Width: 3 in , Outlet Header Length: 21.50 in , Transmission Oil Cooler Included: Yes , Transmission Oil Cooler Type: Plate , Transmission Oil Cooler Plate Quantity: 5 , Transmission Oil Cooler Fitting Diameter: 1/4 NPT , Engine Oil Cooler Included: No , Mounted A/C Condenser: Yes , Mounting Type: Flange , Shroud Type: Shroud

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
