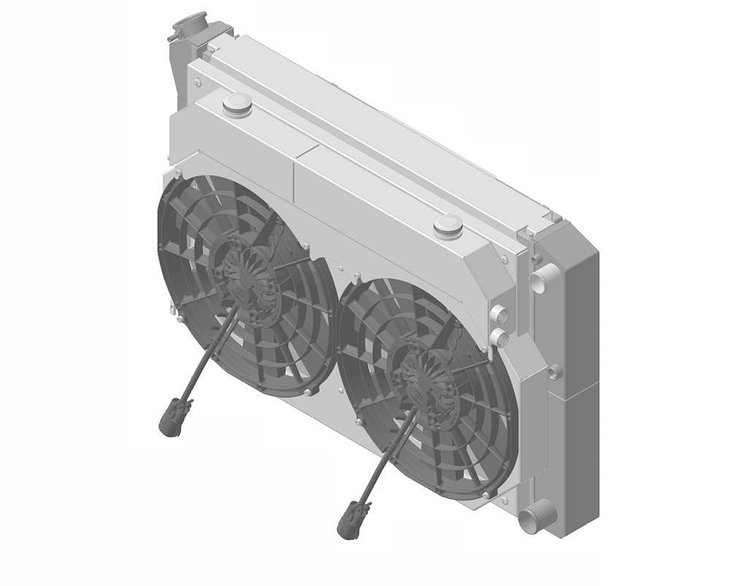

Wizard Cooling 1-716-112LSBLACXXIN300 Features:

Complete cooling system for supercharged LS vehicles, including Air over water intercooler, Spal Brushless fans, AC Condenser, Shroud, Expansion tank, Reservoir tank, high performance radiator

• Engine Compatibility:
  • LS Swap
  • LS Swap (Supercharged)
• Application Nuance: 21.50" Tall
• Shroud: Yes
• Shroud Type: Shroud
• Electric Fans: Yes
• Electric Fan Type: Brushless
• Number of Electric Fans: 2
• Fan Diameter: 14 in
• Total Fan Airflow: 3600 CFM (all fans)
• Critical Thickness Options:
  • 6.50 in
  • 7.50 in
• Fan Shroud & Radiator Thickness Options:
  • 6.50 in
  • 7.50 in
• Core Thickness: 2.25 in (Standard High Performance Core)
• Thickness of Core: 2.25 in (Standard High Performance Core)
• Core Row Quantity: 2
• Cubic Inches of Core: 1367 cu in
• Core Width: 28.25 in
• Core Height: 20.75 in
• Core Material: Aluminum
• Tank Material: Aluminum
• Finish: Aluminum
• Flow Type: Cross Flow
• Mounting Type: Saddle
• Inlet Location: Passenger Side
• Inlet Diameter: 1.3

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
