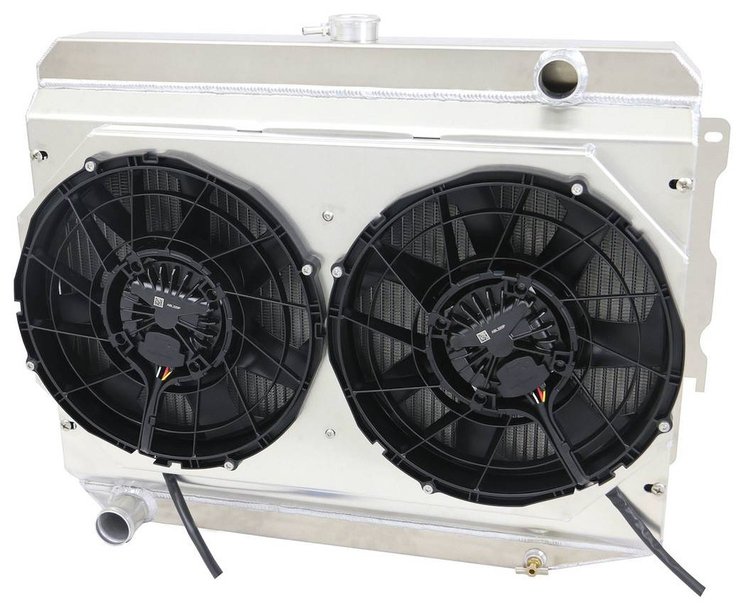

Wizard Cooling 1-375-212BL300 Features:

A true high performance radiator built right here in the USA! This radiator is built with 2 rows of 1.25" tubes, making it the same thickess as a 5 row copper/brass radiator but will perform like a 6 row. The core is fully brazed and contain NO Epoxy. Super high efficiency fin design with a louver count on each fin exceeding other cores in the market. The fans are the best in industies. The benefits of these dual SPAL 300 watt brushless fans are- they extremely powerful, move tons of air, high torque, quieter than brush fans, and are variable speed. This package is 6.5" thick, so check your space before ordering!

Complete cooling system including Spal Brushless fans, Transmission Cooler, Shroud, high performance radiator, Dual Chamber Shroud

• Engine: B/B
• Application Nuance: 26" Core
• Shroud: Yes
• Shroud Type: Shroud
• Electric Fans: Yes
• Electric Fan Type: Brushless
• Number of Electric Fans: 2
• Fan Diameter: 12 in
• Total Fan Airflow: 3600 CFM (all fans)
• Critical Thickness: 6.50 in
• Core Thickness: 2.75 in (Upgraded High Performance Core)
• Thickness of Core: 2.75 in (Upgraded High Performance Core)
• Core Row Quantity: 2
• Cubic Inches of Core: 1294 cu in
• Core Width: 26.50 in
• Core Height: 17.75 in
• Core Material: Aluminum
• Tank Material: Aluminum
• Finish: Aluminum
• Flow Type: Down Flow
• Mounting Type: Flange
• Inlet Location: Passenger Side
• Inlet Diameter: 1.50 in
• Inlet Header Width: 3 in
• Inlet Header Length: 26.50 in
• Outlet Location: Driver Side
• Outlet Diameter: 1.75 in
• Outlet Header Width: 3 in
• Outlet Header Length: 26.50 in
• Tube Inside Diameter: 1 in
• Transmission Oil Cooler Included: Yes
• Transmission Oil Cooler Type: Plate
• Transmission Oil Cooler Plate Quantity: 5
• Transmission Oil Cooler Fitting Diameter: 1/4 NPT
• Engine Oil Cooler Included: No
• Mounted A/C Condenser: No
