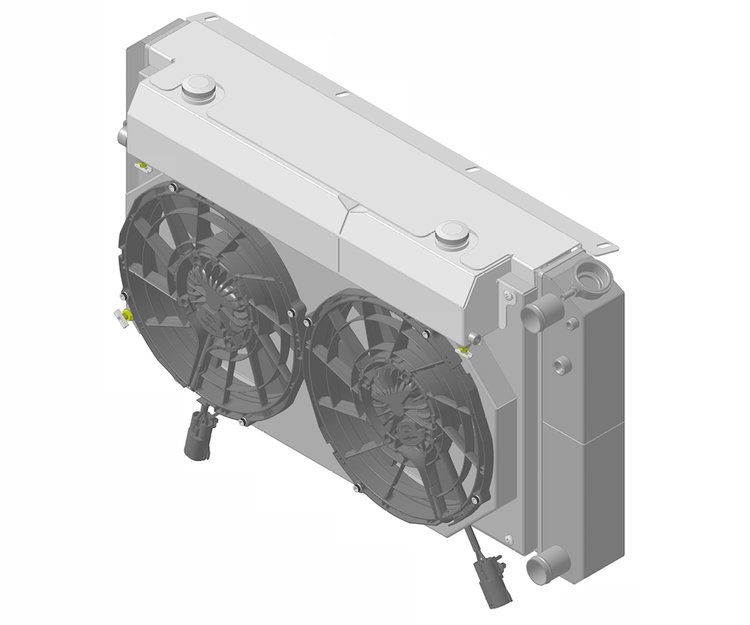

Wizard Cooling 1-361-212LTBLACINXX300 Features:

• Engine: LT Swap (Supercharged)
• Application Nuance: 28.25 in wide core
• Electric Fans: Yes
• Number of Electric Fans: 2
• Electric Fan Type: Brushless
• Fan Diameter: 12 in
• Total CFM (All Fans): 3800
• Critical Thickness: 6.50 in
• Critical Thickness (Alternate): 7.50 in
• Fan Shroud & Radiator Thickness: 6.50 in
• Core Thickness: 2.75 in (Upgraded High Performance Core)
• Core Width: 28.25 in
• Core Height: 18.50 in
• Core Row Quantity: 2
• Cubic Inches of Core: 1437 CuIn
• Core Material: Aluminum
• Tank Material: Aluminum
• Finish: Aluminum
• Flow Type: Cross Flow
• Tube Inside Diameter: 1.25 in
• Inlet Location: Passenger Side
• Outlet Location: Passenger Side
• Inlet Diameter: 1.50 in
• Outlet Diameter: 1.50 in
• Inlet Header Width: 3 in
• Inlet Header Length: 18.50 in
• Outlet Header Width: 3 in
• Outlet Header Length: 18.50 in
• Transmission Oil Cooler Included: Yes
• Transmission Oil Cooler Type: Plate
• Transmission Oil Cooler Plate Quantity: 5
• Transmission Oil Cooler Fitting Diameter: 1/4 NPT
• Engine Oil Cooler Included: No
• Mounted A/C Condenser: Yes
• Expansion Tank Included: Yes
• Mounting Type: Saddle
• Shroud Type: Shroud

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
