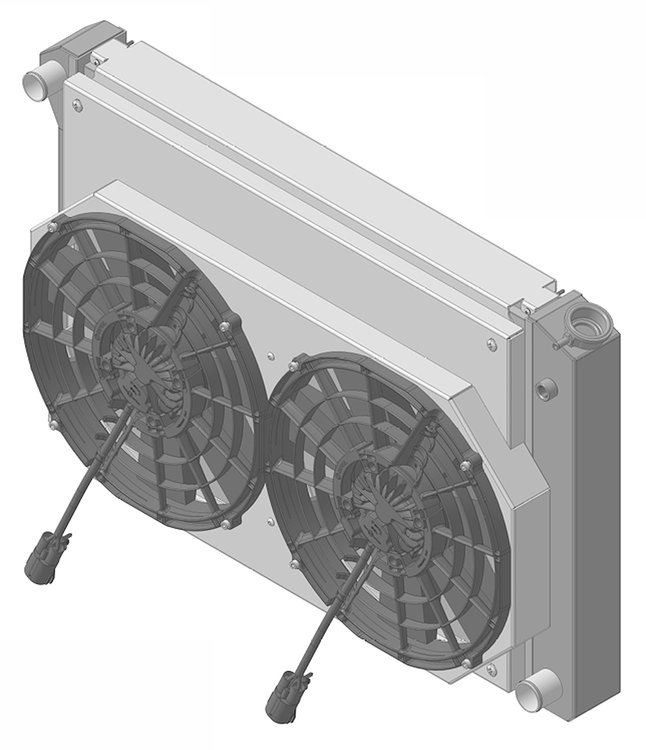

Wizard Cooling 1-716-112BL300 Features:

A true high performance radiator built right here in the USA! This radiator is built with 2 rows of 1.25 in. tubes, making it the same thickess as a 5 row copper/brass radiator but will perform like a 6 row. Since this unit is built for application with a automatic transmission, there is a high performance transmission cooler in this radiator. The core is fully brazed and contain NO Epoxy. Super high efficiency fin design with a louver count on each fin exceeding other cores in the market. The fans are the best in industies. The benefits of this SPAL 300 watt brushless fans are- they extremely powerful, move tons of air, high torque, quieter than brush fans, and are variable speed.

• Engine: B/B, S/B
• Application Nuance: 21.50 in tall
• Shroud Included: Yes
• Shroud Type: Shroud
• Electric Fans: No
• Number of Electric Fans: 2
• Electric Fan Type: Brushless
• Fan Diameter: 14 in
• Total CFM (All Fans): 3600
• Critical Thickness: 6.50 in
• Critical Thickness (Alternate): 7.50 in
• Fan Shroud & Radiator Thickness: 6.50 in / 7.50 in
• Core Thickness: 2.25 in (Standard High Performance Core)
• Core Width: 28.25 in
• Core Height: 20.75 in
• Core Row Quantity: 2
• Cubic Inches of Core: 1367 CuIn
• Core Material: Aluminum
• Tank Material: Aluminum
• Finish: Aluminum
• Flow Type: Cross Flow
• Tube Inside Diameter: 1 in
• Inlet Location: Driver Side
• Outlet Location: Passenger Side
• Inlet Diameter: 1.50 in
• Outlet Diameter: 1.75 in
• Inlet Header Width: 3 in
• Inlet Header Length: 20.75 in
• Outlet Header Width: 3 in
• Outlet Header Length: 20.75 in
• Transmission Oil Cooler Included: Yes
• Transmission Oil Cooler Type: Plate
• Transmission Oil Cooler Plate Quantity: 7
• Transmission Oil Cooler Fitting Diameter: 5/16 in inverted flare
• Engine Oil Cooler Included: No
• Mounted A/C Condenser: No
• Expansion Tank Included: No
• Mounting Type: Saddle
