![Air Compressor [7.5 HP, 220 Volt, Single Phase, 80 Gallon Tank]](https://www.jegs.com/images/mini_750/900/994/994-jeg7180v2-ms.jpg)
Product Discontinued
WOOD INDUSTRIESPART NUMBER: 994-JEG7180V2-MS

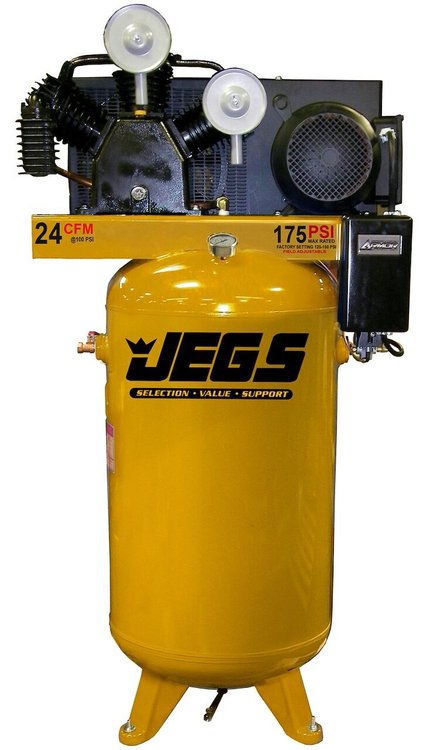

Air Compressor [7.5 HP, 220 Volt, Single Phase, 80 Gallon Tank]
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
7.5 HP 220 Volt Vertical Air Compressor
Air Compressor7.5 HP 208/230 (220) Volt Single Phase Motor 2 Stage Compressor 24.6 cfm @ 100 psi Rated @ 200 max psi Vertical Tank with 80 Gallon Capacity Dimensions: 35 in. L x 24 in. W x 69 in. H Weight: 452 lbs.
Features:
- Thermally Protected 7.5 HP 208/230 (220) Volt Single Phase Motor
- Rugged 2 Stage Compressor with Cast Iron Cylinders
- Mag Starter
- V-Style Design Minimizes Vibration, Improves Cooling, & Extends Compressor Life
- Individual & Removable Cylinders for Smoother & Cooler Operation
- Heavy Duty Pressure Switch has On/Off Control
- Metal Air Filters with “Auto Drop” Feature
- Convenient Oil Drain on Front of Unit
- 80 Gallon ASME Registered Vertical Tank, 200 psi Rating
- Easy-View Oil Sight Gauge
- High Efficiency Reed Valves for Maximum Performance
- Efficient Heat Removal from Pulley-Fan for Cooler Running & Longer Life
- Sturdy Metal Belt Guard
- Outlet Valve Included
Part TypeAir Compressor
BrandWOOD INDUSTRIES
Package Height23.0
Package Width35.0
Package Length66.0
Weight452.0 PG
Part CategoryAccessories
Tank PositionVertical
Power TypeElectric
Cubic Feet Per Minute Rating24.6cfm @ 100psi
QuantitySold individually
Single Or Dual StageDual
Air Hose IncludedNo
Pressure Gauge IncludedYes
Portable Or Fixed MountFixed
Horsepower7.5hp
Voltage208/230
Part FitmentUniversal
Tank IncludedYes
Air Tank Capacity80-Gallon
Maximum Pressure200
Package Qty1
Package TypeEA
