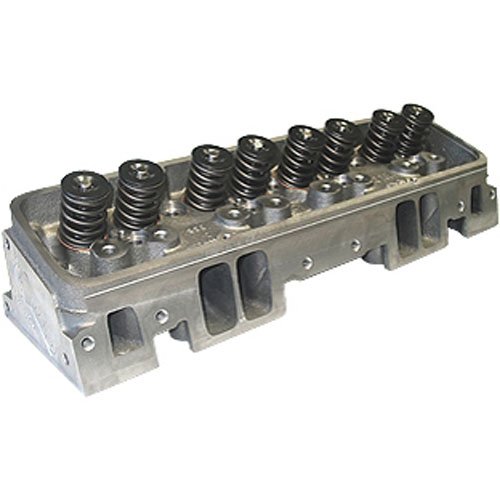

Small Block Chevy Sportsman II Cast Iron Cylinder Head 200cc Intake Ports

Name: Small Block Chevy Sportsman II Cast Iron Cylinder Head 200cc Intake Ports
Brand: WORLD PRODUCTS
SKU: 955-012250-2
Price: 994.84 USD
Availability: InStock

^$994⁸⁴

4 left in stock

Ships on Sep 14, 2026

Lowest Price Guarantee

Small Block Chevy Sportsman II Cast Iron Cylinder Heads - 72cc Combustion Chambers, Straight Plug

200cc Intake Ports
72cc Combustion Chambers
2.020'' Int/1.600'' Exh Valves
1.437'' Valve Springs, .600'' Max Lift for Solid/Hyd. Roller Cam
Straight Plug
Assembled,Sold Individually

Applications: World has tested Sportsman-II heads in many applications including 375Hp 9:1 street engines; 450HP 9.8:1 street /strip engines; all the way to 940HP blown alcohol drag race engines.
Typical Application Street: 274 Cam: 230/236° .487'/.490', Dart II Sportsman #955-061010 dual plane intake; 750 cfm carb, 1-3/4' header. 430HP on 9.8:1 355; 480HP on 383 10.5:1 (varies with displacement and compression ratio).
Typical Application Drag Race: Modified 750 cfm carb, 276/284° roller cam, single plane plenum intake, 1-3/4'-plus header. MUST Upgrade to 1.550' roller valve springs and 10° hardware. Up to 650HP normally aspirated depending on displacement and CR and porting.

TECHNICAL SPECIFICATIONS
Material: High density cast iron
Valve Seats: Integral intake,hardened steel exhaust
Valve Guides: Integral cast iron
Valve Spring Seats: Machined for 1.250' springs
Valve Size: 2.020' x 1.600'
Exhaust Flange: Stock locations, 7-bolt universal pattern
Included In Assembly: Erson stainless steel valves, ring and band-style seals, valve springs, Erson 7° chrome moly retainers, and keepers.
Recommended Installation Items:
Head Gaskets: Fel-Pro #1003 ( 265-350 ) or equivalent
Puhshrods: Requires heat-treated pushrods. Use of 1.6 ratio rocker arms require elongation of pushrod holes.
Screw-in Studs: 3/8" or 7/16" with 7/16"-14 base thread
Pushrod Guidplates: Flat 5/16" Erson 601 or equivalent
Spark Plugs: Accepts 14mm .460' reach tapered seat 5/8' hex or equivalent
Intake Gasket: Fel-Pro #1205 or equivalent
Exhaust Gasket: Fel-Pro #1404 or equivalent
Machine Shop Specifications:
Maximum Valve Diameter: 2.100' x 1.600' or 2.080' x 1.625'
Maximum Spring Seat Depth (from inside step): .030'
Maximum Spring Diameter: 1.550'
Approximate Milling Guidelines(varies with depth): .0065' per cc
Maximum Flat Mill Depth (up to intake seats): .040'
Maximum Angle Mill ( approx. 50-52cc volume): .175' depth
NOTE:These specifications are for reference only. ALWAYS measure before machining.
Emissions Note:
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-343-1
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

The Easiest Way to Bolt On 30-70HP!

Continuously improved since it's 1987 introduction, the World Products Sportsman II is still the industry's most popular cast iron high performance head. Featuring RightCast 200cc intake runners, Fast-Burn chambers and your choice of angled or straight plugs, they're good for 30-70 HP increases right out of the box. They are the aftermarket's only 50-state emissions legal cast iron high performance cylinder head (EO #D-343-1). You should also know that all World Products heads are precision CNC-machined, and indexed off the chambers to assure perfect alignment with the cylinders. Only World offers complete assemblies with Erson stainless steel valves and other quality components including springs, retainers and keepers.

Technical Specifications

Material: High density cast iron
Valve Seats: Integral intake, hardened steel exhaust
Valve Guides: Integral cast iron
Valve Spring Seats: Machined for 1.250'' and 1.550'' springs
Valve Sizes: 2.020'' x 1.600''
Accessory Flange: Stock locations, 7-bolt universal pattern
Included In Assembly: Erson stainless steel valves, ring and band-style seals, valve springs, Erson 7° chrome moly retainers, and keepers.

Recommended Installation Items
Head Gaskets: Fel-Pro 375-1003 or equivalent
Pushrods: Requires heat-treated pushrods. Use of 1.6 ratio rocker arms requires elongation of pushrod holes.
Screw-in Studs: 3/8" or 7/16" with 7/16"-14 base thread
Pushrod Guidplates: Flat 5/16" Erson 601 or equivalent
Spark Plugs: Accepts 14mm .460'' reach tapered seat 5/8'' hex(Accel 276 or 276s, NGK BPMR6F) or equivalent
Intake Gasket: Fel-Pro 375-1205 or equivalent
Exhaust Gasket: Fel-Pro 375-1404 or equivalent

Machine Shop Specifications:
Maximum Valve Diameter: 2.100'' x 1.600'' or 2.080'' x 1.625''
Maximum Spring Seat Depth (from inside step): .030''
Maximum Spring Diameter: 1.550''
Approximate Milling Guideline (varies with depth): .0065'' per cc
Maximum Flat Mill Depth (up to intake seats): .040''
Maximum Angle Mill (approx. 50-52cc volume): .175'' depth

Note: Specs are for reference only. ALWAYS measure before machining.
