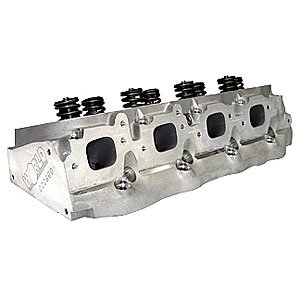

Merlin III Aluminum Heads Big Block Chevy Rectangular Port

Name: Merlin III Aluminum Heads Big Block Chevy Rectangular Port
Brand: WORLD PRODUCTS
SKU: 955-020650-3
Price: 1248.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Merlin III Aluminum Big Block Chevy Rectangular Port Cylinder Heads - 310cc Intake Runner

Big Block Chevy Rectangular Port
Cam Type: Solid/Hyd. Roller
Intake Runner: 310cc Rect.
Max Lift: .700''

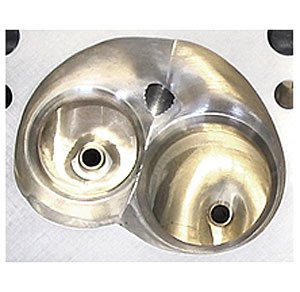

Chamber: 119cc
Spring Specs: 1.550'' Dual 225# Seat
Assembled
Sold individuall

Make An Excess Of 800 HP With No Porting!

This is the World Products cylinder head that highly respected drag racers like Scotty Richardson employ to win NHRA National event titles and literally hundreds of thousands of dollars in high stakes ET Bracket Races. Merlin III is a true high performance head, capable of supporting in excess of 800 HP out of the box. Assemblies include premium quality Erson valves.

Technical Specifications
Material:	355-T6 high density aluminum alloy
Valve Seats:	Steel intake, hardened steel exhaust
Valve Guides:	Bronze
Valve Spring Seats:	Machined for 1.640'' springs
Valve Size:	2.300'' x 1.880''
Exhaust Flange:	Stock port location w/accessory bolt holes
Included In Base Assembly:	Erson stainless steel valves, ring & band style (-1 models) or PC style (-3 & -4 models) valve seals, 1.550'' (-1 & -3 models) or 1.640'' (-4 models) valve springs, Erson 7° (-1 models), 10° (-3 models) retainers, and keepers.

Spark Plugs: Accepts 14mm .750'' reach gasketed 5/8'' hex (NGK 7496 or 4930 or equiv.). Heat range may vary. Consult with engine builder.

Recommended Installation Items
Head Gaskets:	Fel-Pro 375-1017-1 or equivalent
Pushrods:	Requires heat treated pushrods
Rocker Arm Studs:	7/16'' screw-in style with hex shoulder
Intake Gasket:	Fel-Pro 375-1211 or equiv.
Exhaust Gasket:	Fel-Pro 375-1410 or equiv.
Head Bolts:	8 longer than stock required (World 955-073010)
