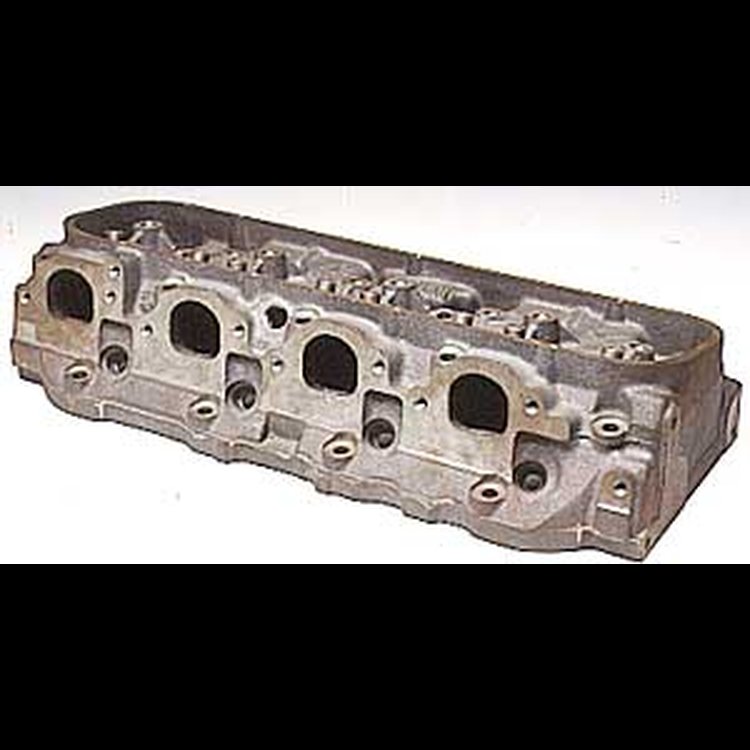

Big Block Chevy Merlin III Cast Iron Cylinder Head 320cc Retangular Intake Ports
InfoVehicle Info Needed
WORLD PRODUCTSPART NUMBER: 955-030620-2

Big Block Chevy Merlin III Cast Iron Cylinder Head 320cc Retangular Intake Ports

$1,49379
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Top Dead Center Locator Made in the USA

JEGS

Top Dead Center Locator Made in the USA

Part Number : 555-80524
$1099$12.99
You Save$2.00
Valve Spring Compressor [Stud Mount]

JEGS

Valve Spring Compressor [Stud Mount]

Part Number : 555-80521
$5299$58.99
You Save$6.00
Head and Crank Storage Bag 35" L x 10" W x 9" H

JEGS

Head and Crank Storage Bag 35" L x 10" W x 9" H

Part Number : 555-80018
$599$6.99
You Save$1.00
92-Piece Port & Polish Kit Made in the USA

JEGS

92-Piece Port & Polish Kit Made in the USA

Part Number : 555-80900
$6239$85.99
You Save$23.60

Big Block Chevy Merlin III Cast Iron Rectangular-Port Cylinder Heads
    Big Block Chevy Merlin III Cast Iron Cylinder Head
  • 320cc Retangular Intake Ports
  • 119cc Combustion Chambers
  • 2.300'' Int/1.880'' Exh Valves
  • 1.550'' Valve Springs, .650'' Max Lift for Hydraulic Roller Cam
  • Assembled, Sold Individually


    Valve Spring Specs: 1.550' Dual Valve Spring 150#, .650' Max Lift

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Improved Performance Over Chevy's Legendary LS6 Heads!

Merlin 269cc Oval Port heads are excellent for most street-driven big-blocks up to 468ci. They'll out-perform larger heads in many applications. When larger engines (454 to 540ci) require added flow, choose the Merlin Rectangle Port cylinder heads. With RightCast 320cc and 345cc intake runners, you can expect solid gains in air/fuel mixture combustion charges. These World Products heads will really respond to higher compression ratios, and are ideally suited for hot street/strip cars.

Show More

Technical Specifications

  • Material: High density cast iron
  • Valve Seats: Integral intake,hardened steel exhaust
  • Valve Guides: Integral cast iron
  • Valve Spring Seats: Bare castings machined for 1.550'' springs
  • Valve Size: 2.300'' x 1.880''
  • Exhaust Flange: Port location raised .250'' , accessory bolt holes, requires ARP Head Bolts #070-135-3605.
  • Included In Base Assembly: Erson stainless steel valves, ring and band style (-1 and -2 models) or PC style (-3 and -4 models) valve seals, 1.550'' (-1, -2 and -3 models) or 1.640'' (-4 models) valve springs, Erson 7° (-1 and -2 models) or 10° (-3 models) retainers and keepers.

    Recommended Installation Accessories
  • Head Gaskets: Fel-Pro 375-1017-1 or equivalent
  • Pushrods: Requires heat treated pushrods
  • Rocker Arm Studs: 7/16'' with 7/16''-14 base thread
  • Pushrod Guideplates: BBC Stepped 3/8''
  • Spark Plugs: Accepts 14mm .460'' reach tapered seat 5/8'' hex (AC Delco R42TS/R43TS) or equivalent. Heat range may vary. Consult with engine builder.
  • Intake Gasket: Fel-Pro 375-1212 or equivalent for oval port head. Fel-Pro 375-1211 or equivalent for rectangle port head.
  • Exhaust Gasket: Fel-Pro 375-1410 or equivalent
  • Head Bolts: 8 longer than stock required (955-832015-8)
Part TypeCylinder Head
Product LineWorld Products Big Block Chevy Merlin III Cast Iron Cylinder Heads
BrandWORLD PRODUCTS
Package Height7.0
Package Width9.8
Package Length23.6
Weight86.35 PG
Part CategoryPerformance Parts
Cylinder Head MaterialCast iron
Intake Port LocationStandard
Exhaust Valves IncludedYes
Locks IncludedYes
Retainers IncludedYes
Lock Style7 degree
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Maximum Valve Lift0.65 in (16.51 mm)
Valve Seat MaterialSteel
Heat CrossoverNo
Number Of Springs Per ValveDual
Valve Springs IncludedYes
Valve Seat Machine Style3-angle
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
Combustion Chamber StyleOpen chamber
QuantitySold individually
Valve Stem Seals IncludedYes
Intake Valve Diameter2.3 in (58.42 mm)
Accessory Bolt Holes DrilledYes
Exhaust Port LocationRaised
Valve Guide MaterialCast iron
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Combustion Chamber Volume (Cc)119
Machined For O-RingNo
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Stem Seal StylePositive stop
Retainer MaterialChromoly steel
Intake Runner Volume (Cc)320
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.88 in (47.752 mm)
Vendor Part Number030620-2
Package Qty1
Package TypeEA
